Braemar MagiqTouch Controller Cable 20M

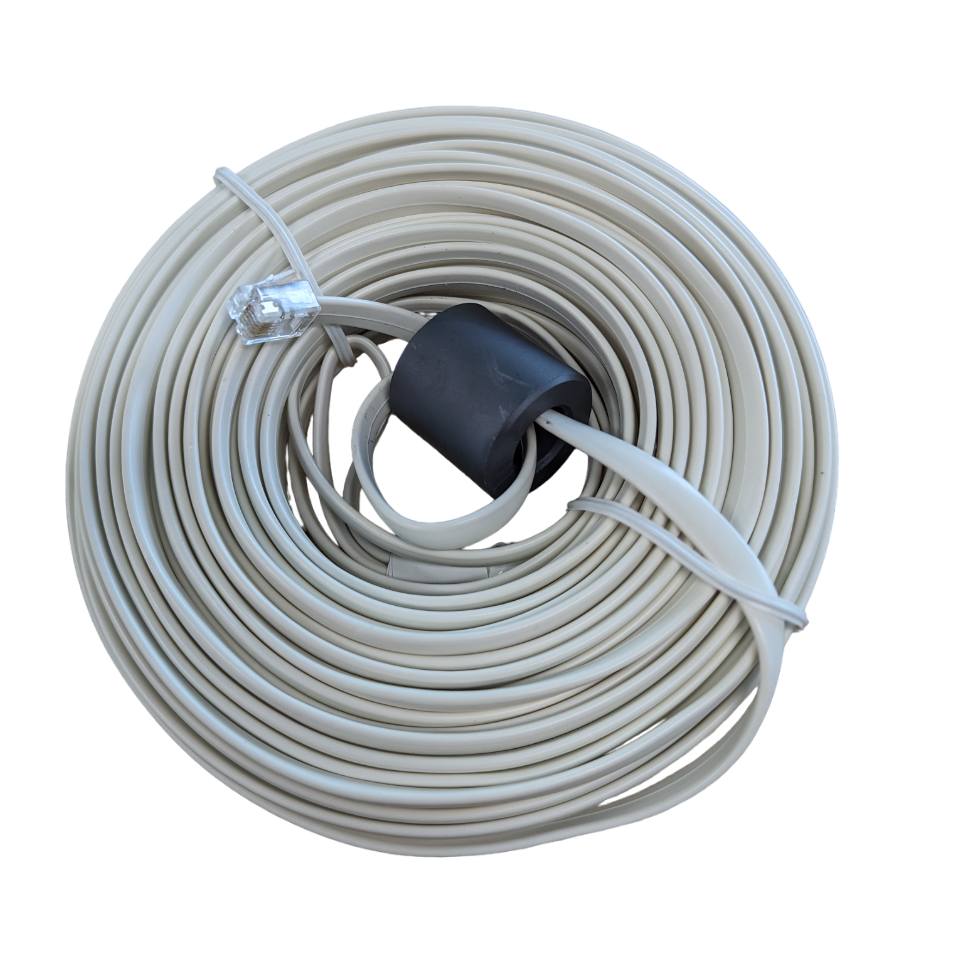

This Braemar MagiqTouch control cable is a 20-metre, 6-pin loom designed for connecting your Braemar MagiqTouch controller. It's built for techs needing to extend controller reach or replace damaged wiring on residential heating and cooling systems.

When you're dealing with older homes or awkward install spots, having enough cable length makes the difference between a clean run and a frustrating workaround. This longer loom means you won't be short-changed on a job.

Best For

• HVAC technicians
• Service and maintenance teams
• Apprentices working on Braemar systems
• Competent DIY owners maintaining Braemar units

Compatibility

This cable is specifically designed to suit Braemar MagiqTouch controllers. It's a direct replacement or extension for their existing wiring looms.

If you're running a different model, check fittings and specs before ordering.

Features

• Genuine Braemar Part: Ensures compatibility and reliable performance with MagiqTouch controllers.
• 20-Metre Length: Provides ample reach for varied installation requirements, avoiding the need for splicing.
• 6-Pin Connector: Standard configuration for seamless integration with compatible Braemar controllers.
• Durable Loom Construction: Designed to withstand typical installation conditions within residential HVAC environments.

Technical Specifications

What's in the Box

• 1x Braemar MagiqTouch Cable (20 metres, 6 Pin)

Using It on the Job

1. Power Down: Always isolate and lock out power to the HVAC unit before disconnecting or connecting any control wiring.
2. Identify Connection Points: Locate the existing controller cable connections on both the MagiqTouch controller and the main unit control board.
3. Route New Cable: Carefully route the 20-metre cable, ensuring it avoids sharp edges, pinch points, and excessive heat sources. Use cable ties for a neat and secure run.
4. Connect Securely: Plug in the 6-pin connectors firmly at both ends, making sure they seat properly.
5. Test Operation: Restore power and verify all controller functions are working correctly. Check for error codes.
6. Document: Note the replacement date and any relevant details in your service log.

Limitations & Safety Notes

• This cable is specifically for Braemar MagiqTouch controllers; do not attempt to use it with incompatible systems.
• Always ensure power is completely disconnected before working with electrical components to prevent shock.
• Ensure proper cable routing to prevent damage from environmental factors or physical stress.
• Follow manufacturer's instructions for controller installation and wiring.

Tradie Pro Tip

"Before pulling a new cable, always try to use the old one as a guide or attach the new one to the old and pull it through. Saves a heap of time trying to fish it through walls or roof spaces, especially when it's hot up there."

Pair With

Pair with replacement Braemar MagiqTouch controllers or a new Braemar evaporative cooler for a complete install.
