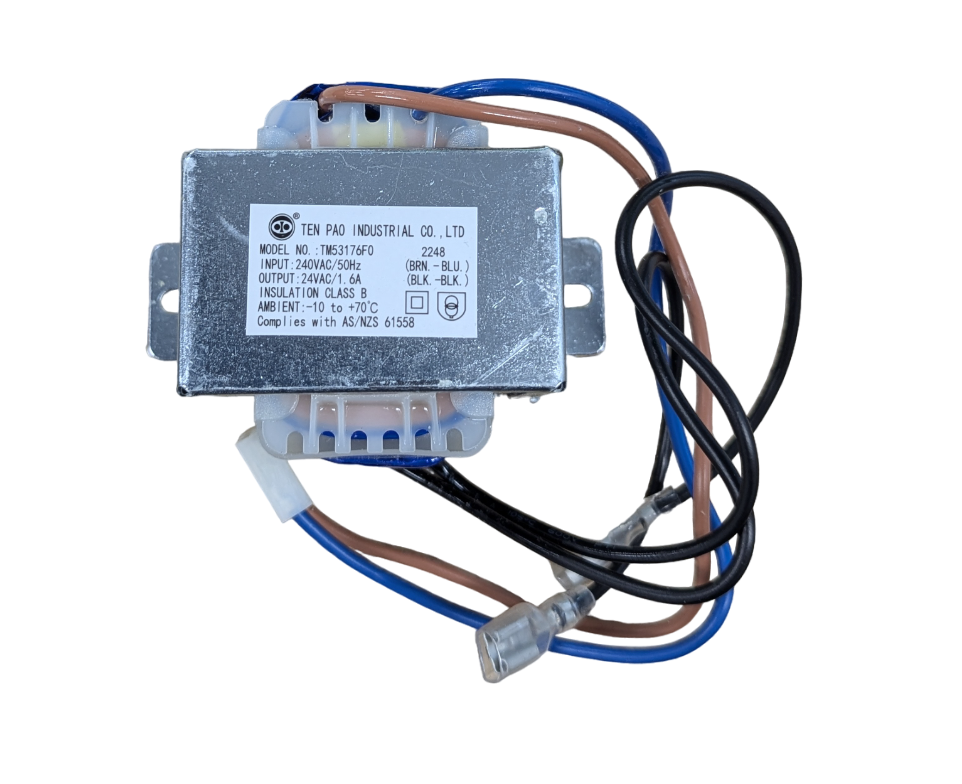

Braemar Heater Transformer 240/24V 1.70A

When your Braemar gas heater starts playing up, a faulty transformer is often the culprit. This genuine Braemar 240/24V 1.70A transformer, part number SY626123, is the direct replacement you need to get things running smoothly again.

I've swapped out enough of these over the years to know that having the right genuine part saves a heap of rework and call-backs, especially when you're on a busy schedule during an Australian winter.

Best For

• HVAC service technicians maintaining Braemar ducted gas heaters.
• Gasfitters and plumbers working on residential heating systems.
• Competent DIY homeowners with electrical skills troubleshooting their Braemar heater.

Compatibility

This Braemar transformer is designed to suit a wide range of Braemar models, including:

• BMQ
• CBQ
• TQ
• CQS
• SSQ
• TQM
• TQS
• TH
• THM
• TSS
• TG
• TA
• TB
• TE
• TX
• GH
• GHA Space Heaters & Wall Furnace models

If you're running a different model, check fittings and specs before ordering.

Features

• Genuine Braemar replacement part, ensuring proper fit and function.
• Converts standard 240V AC mains power down to 24V AC for heater control circuits.
• Rated for 1.70 Amps, providing ample power for compatible Braemar heater control boards and components.
• Direct swap for Braemar part number 626123.

Technical Specifications

What's in the Box

• 1 x Braemar Heater Transformer 240/24V 1.70A (SY626123)

Using It on the Job

1. Isolate Power: Always begin by switching off the main power supply to the heater at the breaker and implementing lockout/tagout procedures.
2. Access Panel: Carefully remove the heater's access panel to expose the control board and existing transformer.
3. Disconnect Wiring: Take clear photos of existing wiring before disconnecting the 240V input and 24V output wires from the old transformer.
4. Remove Old Transformer: Unmount the old transformer from its location.
5. Install New Transformer: Mount the new SY626123 transformer in the same position, ensuring it's securely fastened.
6. Connect Wiring: Reconnect the 240V input and 24V output wires, referencing your photos to ensure correct polarity and connections. Double-check all terminals.
7. Test: Restore power and test the heater's functions, including ignition, fan operation, and safety cut-outs.

Limitations & Safety Notes

• This transformer is specifically for Braemar gas heating appliances with 240V input and 24V control circuits.
• Installation and servicing of gas appliances must be performed by a licensed professional in Australia.
• Always ensure power is isolated and verified dead before commencing any electrical work.
• Mismatching voltage or current ratings can damage the heater's control board or create a fire hazard.
• Follow all manufacturer's instructions and relevant Australian electrical safety standards during installation.

Tradie Pro Tip

Before you even pull out the multimeter to check the transformer, always give the heater's wall controller a good check. Sometimes a flat battery or a setting error can mimic a control circuit issue, saving you a strip-down. If that's good, then check for 240V AC going into the transformer and 24V AC coming out. No 24V out means it's time for a swap.

Pair With

This transformer pairs well with other Braemar control boards, ignitors, and gas valves if you're undertaking a wider heater repair. Don't forget a good quality multimeter to assist with fault finding.
