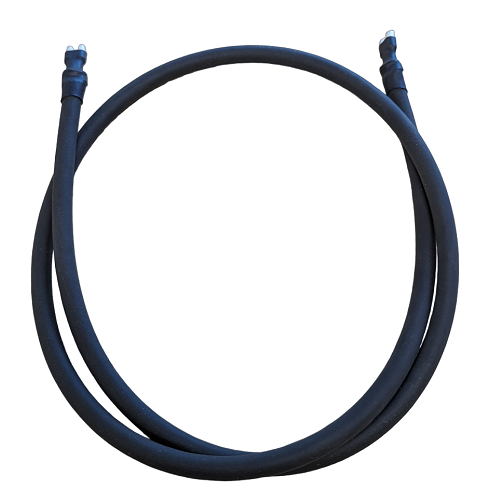

Braemar Heater Electrode Spark Sensor TG5 TH5

This Braemar heater electrode spark sensor (SY625430) is a direct replacement part for your TG5 or TH5 ducted gas heater. It's crucial for reliable ignition, especially during those frosty Australian winter mornings when your heater needs to kick in first go.

A faulty spark sensor can mean no heat, which is a call-out you want to avoid. Replacing a worn-out electrode ensures your unit sparks consistently, giving your customers, or your family, uninterrupted warmth.

Best For

• HVAC service technicians
• Gas heater repair specialists
• Competent DIY homeowners maintaining their Braemar TG5/TH5 units

Compatibility

This electrode spark sensor (part number SY625430) is specifically designed for Braemar TG5 and TH5 ducted gas heaters. It replaces the original Braemar lead suppression ignition unit. If you're running a different model, check fittings and specs before ordering.

Features

• Genuine Braemar replacement part, ensuring proper fit and function.
• Includes lead suppression for reliable ignition.
• Designed for Braemar TG5 and TH5 ducted gas heater models.
• Direct replacement for part number 625430 (Seeley PN).

What's in the Box

• 1 x Braemar Heater Electrode Spark Sensor (SY625430)

Using It on the Job

1. Always isolate power to the heater at the main switchboard and perform lockout/tagout procedures before commencing any work.
2. Carefully locate the existing spark sensor within the combustion chamber of your Braemar TG5 or TH5 heater.
3. Disconnect the wiring and remove the old sensor, noting its orientation.
4. Install the new SY625430 electrode, ensuring all connections are secure and the sensor is correctly positioned.
5. Restore power and test the heater for reliable ignition and normal operation.
6. Check for any error codes or unusual behaviour after replacement.

Limitations & Safety Notes

• Always ensure power is isolated before working on gas heating appliances.
• Gas appliance work should only be performed by a qualified and licensed gasfitter in Australia.
• Follow manufacturer's installation instructions and relevant Australian standards.
• This part is only compatible with Braemar TG5 and TH5 ducted gas heaters.

Tradie Pro Tip: Before you swap out the sensor, give the original one a good clean with a brush. Sometimes, a bit of carbon build-up is all it takes to cause an intermittent spark. If that doesn't fix it, then it's time for the replacement.

Pair With

Pair with other Braemar Heating spares like pressure switches or gas valves, or general universal spares for your ducted gas heater maintenance.
