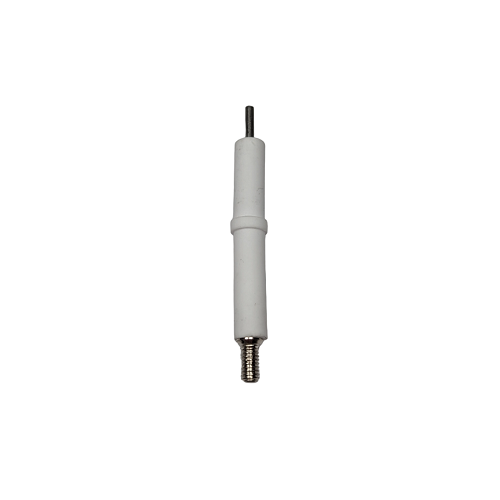

Braemar Gas Heater Straight Ignition Electrode

This straight ignition electrode is a direct replacement part, crucial for reliable starts in your gas wall furnace. It helps keep older Braemar and Vulcan units firing consistently, avoiding those frustrating no-spark issues.

There's nothing worse than getting to a job on a cold winter morning and finding a heater with a dead ignition. Having the right spare on hand saves call-backs and keeps your customers warm.

Best For

• HVAC technicians performing maintenance on gas wall furnaces.
• Owners of compatible Braemar and Vulcan wall furnaces needing a replacement part.
• Gas fitters servicing residential heating systems.

Compatibility

This straight ignition electrode (SIT PN: 0915024, HVAC Shop SKU: ST0915024) is designed to suit various Vulcan and Braemar wall furnaces. It's specifically for use with a Catoba 3-way Pilot assembly.

If you're running a different model, check fittings and specs before ordering.

Features

• Straight Electrode Design: Standard configuration for specific pilot assemblies.
• Broad Compatibility: Suits a range of Vulcan and Braemar wall furnaces.
• Catoba 3-Way Pilot Specific: Designed to integrate correctly with this common pilot type.
• Genuine SIT Part: Ensures reliability and correct fitment as per manufacturer specifications.

What's in the Box

• 1 x Straight Ignition Electrode (SIT PN: 0915024 / ST0915024)

Using It on the Job

1. Always begin by isolating power and gas supply to the heater. Follow appropriate lockout/tagout procedures.
2. Locate the existing ignition electrode within the pilot assembly. Document its position and wiring connections if unsure.
3. Carefully disconnect the high-tension lead from the electrode and unmount the old unit.
4. Install the new SIT ST0915024 electrode, ensuring it is correctly seated and positioned relative to the pilot flame.
5. Reconnect the high-tension lead securely, checking for any frayed wires or damaged insulation.
6. Once assembly is complete, restore gas and power, then initiate the heater to verify proper ignition and operation.

Limitations & Safety Notes

• Work on gas appliances must only be performed by a currently licensed gas fitter in Australia.
• Always ensure power and gas supplies are isolated and verified before commencing any work.
• Confirm this electrode's part number (ST0915024 / 0915024) matches your specific heater model and pilot type.
• Not suitable for heaters that do not use a Catoba 3-way Pilot or the specified Braemar/Vulcan models.

Tradie Pro Tip: Before ordering, grab a good look at your existing pilot assembly. Sometimes, what looks like a standard straight electrode can have slight variations in length or connection that'll stop a heater from firing up reliably when you need it most.

Pair With

Consider pairing this electrode with an ignition module, a multi-meter for electrical checks, and quality thread sealant for gas connections when servicing your heater.
