Braemar Flame Sensor Spark Ignitor Retro Kit

This Braemar Flame Sensor and Spark Ignitor Retro Kit (SY651800) is your go-to for keeping older Braemar non-condensing ducted gas heaters firing reliably. It's designed to replace worn-out ignition and flame proving components, helping you get that heater back up and running smoothly without a fuss.

When you're out on a job in winter, a reliable spark and accurate flame sense mean a call-back avoided and a happy customer. This kit provides everything needed for a solid ignition system overhaul in compatible units.

Best For

• HVAC service technicians maintaining Braemar ducted gas heaters.
• Licensed gasfitters performing repairs on gas appliances.
• Property managers overseeing older heating systems.

Compatibility

This retrofit kit is specifically engineered for Braemar TQ3/4 and TH3/4 non-condensing ducted gas heater units. It's a direct replacement for several older part numbers, including 651818, 638683, 646985, 636641, and 622187, ensuring you can upgrade your system without compatibility headaches. If you're running a different model, check fittings and specs before ordering.

Features

• Complete Retrofit Solution: Provides all necessary components to upgrade the flame sensing and spark ignition system.
• Non-Condensing Design: Specifically suited for Braemar TQ3/4 and TH3/4 non-condensing ducted gas heaters.
• Direct Replacement: Engineered to replace multiple legacy Braemar part numbers for easier servicing.
• Reliable Performance: Ensures consistent ignition and accurate flame proving for safe and efficient heater operation.

What's in the Box

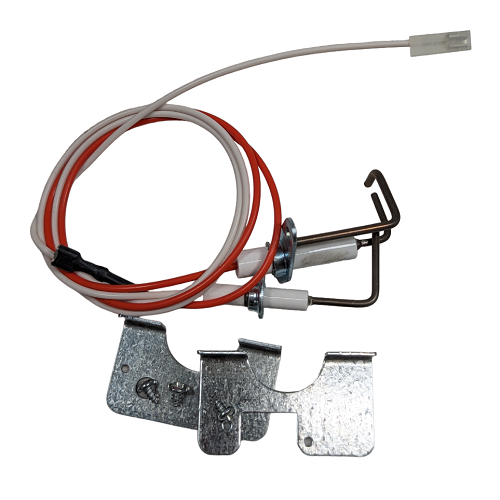

• Electrode Flame Sense Short
• Electrode Dual Probe Short
• Bracket Mount Flame Sense DGH
• Bracket Spark Dual Probe 2022
• Screw 6G*1/4 Ph Phlp ZP
• Bracket Standoff Sparker Lead
• Grommet M233 Silicone
• Leaflet -Sparker Retrofit 2020
• Leaflet Flame/Sparker Dual Retro

Using It on the Job

1. Isolate Power & Gas: Always start by switching off electrical power at the breaker and closing the gas supply valve to the heater. Follow all lockout/tagout procedures.
2. Access Components: Carefully open the heater's combustion chamber access panel to expose the existing flame sensor and spark ignitor.
3. Disconnect & Remove: Disconnect all wiring and gas connections (if applicable) from the old components. Unmount the old sparker and sensor from their brackets.
4. Install New Kit: Mount the new Electrode Flame Sense Short and Electrode Dual Probe Short using the provided brackets and screws. Ensure correct alignment and secure fastening.
5. Reconnect Wiring: Reattach all electrical leads securely to the new components. Double-check all connections are tight and correctly seated.
6. Restore & Test: Close up the heater, restore gas and electrical power. Initiate a test cycle to confirm proper ignition and flame proving. Check for any gas leaks if disturbing gas connections.

Limitations & Safety Notes

• Installation and servicing of gas appliances must only be performed by a currently licensed gasfitter in accordance with AS/NZS 5601.1.
• Always isolate power and gas supply before commencing any work on the appliance.
• Only for use on specified Braemar TQ3/4 and TH3/4 non-condensing units. Verify your model number before purchase.
• Follow all manufacturer instructions and Safe Work Australia guidelines during installation and testing.

Tradie Pro Tip: When installing new flame sensors, give the ceramic insulator a quick wipe down with a clean, lint-free cloth. Even tiny residues can affect conductivity and lead to intermittent flame proving issues down the track.

Pair With

Pair this kit with a reliable multimeter for electrical checks and a digital manometer for accurate gas pressure readings. Check out our range of Ducted Gas Heater Spares to keep your service vehicle stocked.
