Braemar Flame Condensing Flame Sparker Retro Kit

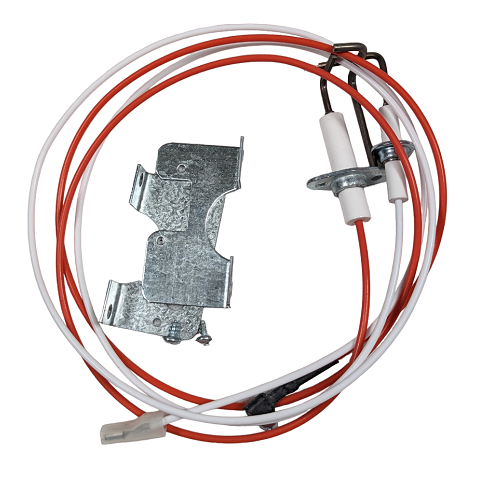

This Braemar Flame Condensing Flame Sparker Retro Kit (SY651799) is your go-to solution for servicing specific Braemar ducted gas heaters. It provides a full refresh for the ignition and flame sensing components, critical for reliable and safe operation, especially in the colder months when a heater lockout is the last thing anyone wants to deal with.

Designed specifically for condensing models, this kit ensures your heater maintains optimal performance and efficiency, preventing call-backs caused by intermittent ignition or flame detection faults. Having this kit on hand means you're prepared for common ignition issues on Braemar condensing units.

Best For

• HVAC technicians performing routine maintenance or repairs on Braemar ducted gas heaters.
• Service teams addressing ignition issues in residential or light commercial settings.
• Competent DIY owners replacing faulty spark ignitors or flame sensors in compatible Braemar units.

Compatibility

This retro kit is engineered for specific Braemar condensing ducted gas heaters. It's a direct replacement for the sparker and flame sensor in the following models:

• TQ5 Series
• TQS5 Series
• TQM6 Series
• TQS6 Series
• TQS7 Series
• TG Series
• TH5 Series

It also supersedes previous part numbers 651810, 636665, and 622187, simplifying inventory for common repairs. If you're running a different model, check fittings and specs before ordering.

Features

• Direct Replacement: Designed as a complete retro kit for sparker and flame sensor assemblies in specified Braemar condensing gas heaters.
• Enhanced Reliability: Provides new ignition and flame sensing components to restore consistent and safe heater operation.
• Condensing Unit Specific: Optimised for the unique requirements and operating conditions of Braemar's condensing ducted gas heaters.
• Supersedes Old Parts: Replaces multiple legacy part numbers, making it easier to stock the correct spare.

What's in the Box

• Electrode Flame Sense Long
• Electrode Dual Probe Long
• Bracket Mount Flame Sense DGH
• Bracket Spark Dual Probe 2022
• Bracket Standoff Sparker Lead
• Grommet M233 Silicone
• Screw 6G*1/4 Ph Phlp ZP
• Leaflet - Sparker Retrofit 2020 (Installation Guide)
• Leaflet Flame/Sparker Dual Retro (Installation Guide)

Using It on the Job

1. Isolate Power & Gas: Before starting any work, ensure the heater's electrical supply is turned off at the main switchboard and the gas supply is shut off at the isolation valve. Verify with a multimeter for electrical safety.
2. Access & Disconnect: Remove necessary panels to access the existing spark ignitor and flame sensor assembly. Carefully disconnect the wiring and gas line (if integrated) and unmount the old components.
3. Install New Components: Mount the new Electrode Flame Sense Long and Electrode Dual Probe Long using the provided brackets and screws. Ensure correct orientation and secure fitting to prevent vibration issues.
4. Reconnect & Verify: Reconnect all electrical leads according to the wiring diagram in the included leaflets. Double-check all connections for tightness and proper routing.
5. Leak Test & Commission: Restore gas and electrical supply. Perform a gas leak test around any disturbed gas connections if applicable. Initiate the heater and observe several ignition cycles to ensure consistent spark and stable flame sensing.
6. Check Flueing: After reassembly, verify that all flueing components are secure and free of obstructions, and that combustion air intake is clear.

Limitations & Safety Notes

• This kit is specifically designed for the listed Braemar condensing heater models only. It is not suitable for non-condensing or other brand units.
• Work on gas appliances requires appropriate licensing and certification in Australia. Only licensed gas fitters and HVAC technicians should undertake installation and repair of gas heating systems.
• Always follow manufacturer's installation instructions and relevant Australian Standards (e.g., AS/NZS 5601.1 Gas Installations) and Safe Work guidance.
• Ensure proper electrical isolation and lockout procedures are followed before commencing any work to prevent accidental energisation.

When installing these, always take photos of the old setup before you pull it apart. Even with the leaflets, a visual reference of the wiring and bracket orientation can save you a headache and prevent incorrect reassembly, especially on a cold rooftop install.

Pair With

Pair this retro kit with a reliable digital manometer for accurate gas pressure checks and suitable HVAC Shop universal gas valves for comprehensive gas heating system maintenance.
