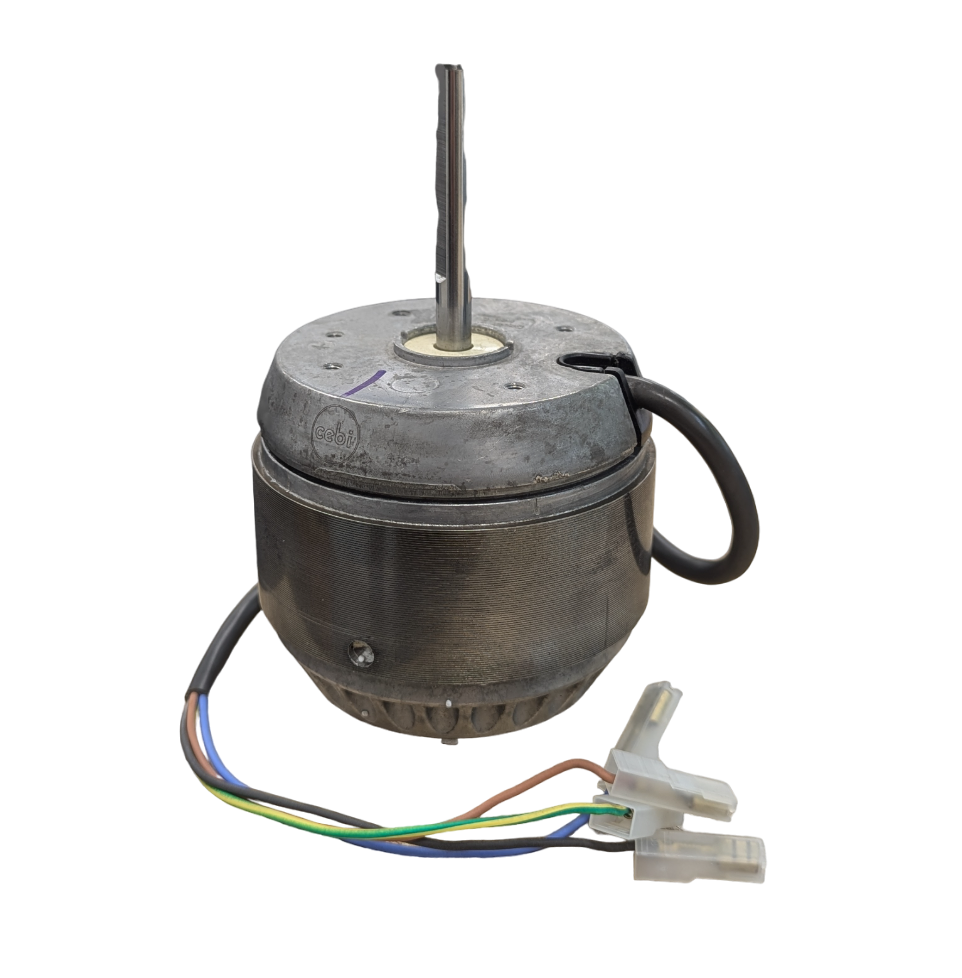

Braemar Fan Motor for Wall Furnace WF30 WF40

This Braemar Fan Motor (SY612096) is a direct replacement part designed for your Braemar WF30 and WF40 wall furnaces. It’s critical for circulating heated air throughout the space, ensuring your unit runs efficiently and keeps the warmth flowing as intended. After a busy winter, checking motor bearings and airflow is a smart move before your customer's furnace bails on them mid-cold snap.

When a furnace motor starts making grinding noises or the airflow drops off, it's often time for a swap. Keeping a genuine spare on hand means less downtime for your customers.

Best For

• HVAC service technicians replacing worn-out furnace components.
• Apprentices learning wall furnace maintenance.
• Competent DIY owners maintaining their Braemar WF30 or WF40 units.

Compatibility

This fan motor is specifically engineered for Braemar Wall Furnace models WF30 and WF40. It's a genuine replacement part, ensuring proper fit and function within these systems. If you're running a different model, check fittings and specs before ordering.

Features

• Direct Replacement: Designed as a genuine part for Braemar WF30 and WF40 wall furnaces.
• Reliable Airflow: Ensures consistent and efficient distribution of heated air.
• Minimises Downtime: Quick replacement helps get heating systems back online fast.
• Built to Spec: Meets original manufacturer specifications for form, fit, and function.

What's in the Box

• 1 x Braemar Fan Motor (SY612096)

Using It on the Job

1. Safety First: Always isolate power to the furnace at the circuit breaker and confirm it's off before starting any work. Consider using a lockout/tagout procedure.
2. Access the Motor: Carefully remove the furnace cover and any other components obstructing access to the fan motor. Document wire connections with photos if necessary.
3. Disconnect & Remove: Disconnect all electrical connections and mounting hardware from the old motor. Pay attention to the fan wheel attachment (grub screw or bolt).
4. Install New Motor: Mount the new Braemar fan motor securely and reattach the fan wheel. Ensure the fan wheel is balanced and clears all housing components.
5. Reconnect & Test: Reconnect all wiring exactly as it was. Restore power and carefully test the furnace operation, checking for proper fan rotation and airflow. Monitor for unusual noises or vibrations.

Limitations & Safety Notes

• This fan motor is only compatible with Braemar WF30 and WF40 wall furnace models.
• Electrical work on heating appliances should be performed by a qualified and licensed technician.
• Always follow manufacturer's instructions for installation and relevant Australian electrical safety standards.
• Ensure power is isolated and confirmed dead before attempting any service or replacement.

When you're pulling an old motor, check the fan wheel for excessive dust or balance issues. A good clean or balancing of the fan wheel can sometimes extend the life of a motor, but when it’s truly gone, get the right replacement in to keep that furnace humming efficiently.

Pair With

Pair with a digital multimeter for checking electrical circuits and appropriate hand tools for removal and installation. Consider checking furnace filters or ignitors if you’re doing a full service.
