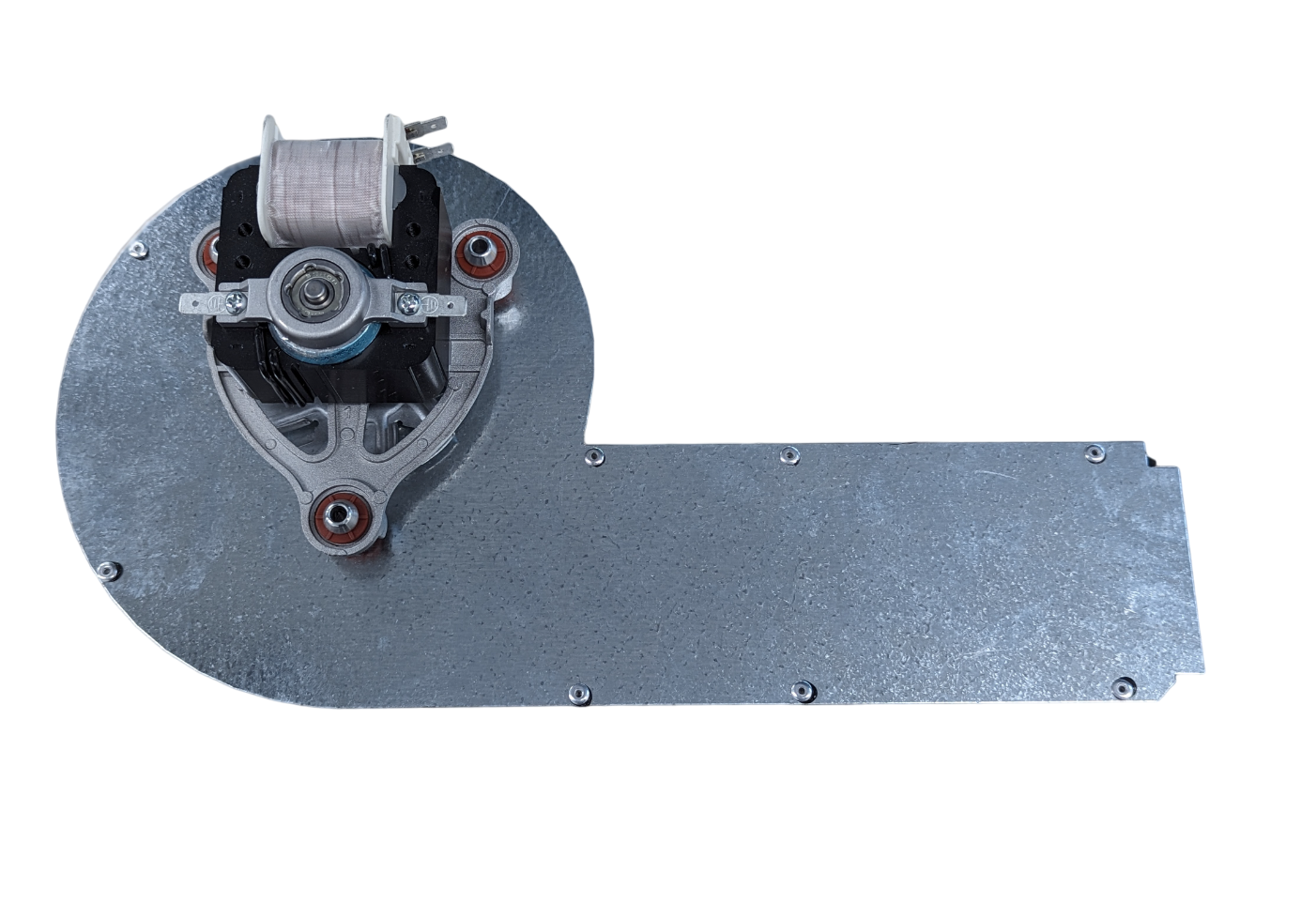

Braemar Extra Long Combustion Fan

This Braemar Extra Long Combustion Fan (SY642963) is a direct replacement part designed to restore proper operation to specific Braemar ducted gas heaters. It ensures your unit can effectively vent combustion by-products, maintaining safety and heating efficiency, especially important during a cold snap down south. When these fans start to go, you often hear a tell-tale bearing squeal or struggle to ignite, which means it's time for a swap.

This fan is a critical component for safe and efficient operation, ensuring flue gases are properly exhausted from the combustion chamber.

Best For

• HVAC technicians
• Gasfitters
• Competent DIY homeowners servicing Braemar ducted gas heating systems

Compatibility

This combustion fan is specifically designed for Braemar ducted gas heater models:

• TH330 / 3X30 / BM330 / 3X30 / THD330
• TH430 / 4X30 / 435

It is crucial to note that this fan is only suitable for units manufactured post 19/03/2013 (from Serial No. T13031831 onwards). If your unit was manufactured prior to this date (Pre-Serial No. T13031831), you'll need the SY638379 combustion fan instead. Always check your unit's serial number before ordering to ensure correct fitment.

Features

• Direct Replacement: Engineered as an OEM-compatible part for specific Braemar ducted gas heaters, ensuring seamless integration and performance.
• Extra Long Neck: Features an extra-long neck design for specific model fitment, twisting directly to the flue pan as per manufacturer specifications.
• Post 2013 Production: Designed for Braemar units manufactured after March 19, 2013 (Serial No. T13031831 and later).
• Reliable Operation: Helps maintain efficient and safe combustion by ensuring proper exhaust of flue gases.

What's in the Box

• 1 x Braemar Extra Long Combustion Fan (SY642963)

Using It on the Job

When replacing a combustion fan, follow these steps for a safe and effective repair:

1. Isolate Power: Always begin by switching off the power to the heater at the main breaker and following proper lockout/tagout procedures.
2. Access Fan: Locate and carefully access the old combustion fan within the heater unit. This may involve removing casing panels.
3. Disconnect & Remove: Disconnect any wiring and remove fasteners securing the old fan. Pay attention to how it mounts and connects to the flue pan.
4. Install New Fan: Position the new Braemar fan, ensuring the extra-long neck twists and seats correctly into the flue pan. Secure it with the appropriate fasteners.
5. Reconnect Wiring: Reconnect the electrical wiring to the new fan, ensuring all connections are secure and correct.
6. Test Operation: Before fully reassembling, restore power and conduct a test run to ensure the fan operates smoothly, quietly, and correctly, and that the burner ignites without issue.

Limitations & Safety Notes

• This fan is only for specific Braemar ducted gas heater models manufactured after 19/03/2013. Check your serial number.
• Installation and servicing of gas appliances should always be performed by a licensed gasfitter or qualified HVAC technician.
• Always isolate electrical power before commencing any work on heating appliances.
• Follow all manufacturer's instructions and local safety regulations during installation and maintenance.

Tradie Pro Tip

Before you even pull out your tools, double-check the date stamp or serial number on the unit. Braemar changed this fan design, and using the wrong one will cause major headaches during installation and potentially impact safety and performance. A quick check can save a return trip.

Pair With

Pair with replacement ignitors or flame sensors, and ensure you have a quality multimeter for testing electrical connections during the repair process. For thorough system checks, consider also looking at pressure switches and control boards.
