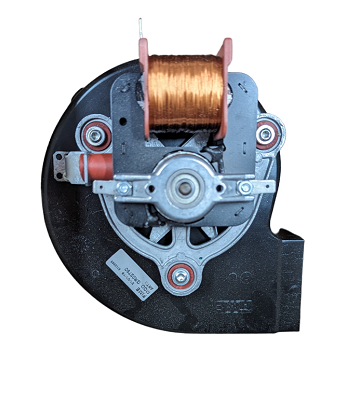

Braemar Combustion Fan 5 Star

This Braemar 5 Star combustion fan is a direct replacement part designed to keep ducted gas heaters running smoothly. It helps technicians and competent owners maintain optimal heater performance and safety, especially important during a chilly Aussie winter.

When one of these fans starts making noise or fails, it often means reduced airflow and inefficient combustion, sometimes even leading to a lockout. Getting the right genuine replacement is key to a quick fix.

Best For

• Replacing faulty or noisy combustion fans in Braemar 5 Star ducted gas heating units.
• HVAC service technicians and licensed gas appliance repair specialists.
• Competent DIYers maintaining their own Braemar gas heaters (with appropriate safety precautions).

Compatibility

This combustion fan (Part/Code: SY621517) is specifically designed to suit Braemar 5 Star ducted gas heating units. It's a short-neck model and is also cross-referenced as Seeley PN: 621517.

If you're running a different model, always double-check the part number and existing fan configuration before ordering.

Features

• Genuine Braemar replacement part, ensuring proper fit and function.
• Designed for 5 Star ducted gas heating units, maintaining original performance specifications.
• Features a short neck configuration, suitable for specific Braemar models.
• Durable power-coated black finish for protection and longevity.

What's in the Box

• One Braemar 5 Star Combustion Fan (SY621517), power-coated black.

Using It on the Job

1. Isolate Power: Always begin by shutting off power to the gas heater at the main switchboard and applying a lockout tag.
2. Access Fan: Remove the heater's access panels to locate the existing combustion fan.
3. Disconnect Wiring & Flue: Carefully disconnect electrical wiring and any associated flue or duct connections from the old fan. Note wiring positions if not clearly marked.
4. Remove Old Fan: Unmount and remove the faulty combustion fan.
5. Install New Fan: Mount the new Braemar fan, reconnect electrical wiring, and secure all flue/duct connections.
6. Test Operation: Restore power and run the heater through a test cycle to ensure the new fan operates correctly and there are no abnormal noises or vibrations.

Limitations & Safety Notes

• Installation of gas appliance components should only be performed by a licensed gas fitter or qualified HVAC technician.
• Always ensure the appliance's power supply is isolated and locked out before commencing any work.
• Verify correct fan rotation and airflow after installation to ensure safe and efficient combustion.
• This fan is for Braemar 5 Star ducted gas heaters only. Using it in incompatible systems may cause damage or unsafe operation.

Tradie Pro Tip

"When replacing a combustion fan, it's a good time to inspect the ignitor, flame sensor, and pressure switch too. Often, a failing fan puts extra strain on these components, or their failure contributes to the fan's demise."

Pair With

Consider pairing with replacement ignitors, flame sensors, or pressure switches for Braemar gas heaters. A quality multimeter can also be handy for diagnosing electrical faults during the repair process.
