Description
Built for Australian HVAC pros, the Bradley VP Series delivers fast, reliable evacuations with 15-micron performance, electronic anti-backflow, A1/A2L compatibility, and a trade-ready 5 m lead. Choose 50, 150, or 250 L/min to match your workload and cut time on site.
Variants and Detailed Specifications
BRA-VP50S — 50 L/min Dual-Stage Vacuum Pump
Compact and reliable for split systems and quick service work. The VP50S delivers a stable 15 micron ultimate vacuum with an electronic anti backflow solenoid, making it a great everyday pump for installers, apprentices, and service techs.
What it’s best for
Residential split and small ducted installs
Service and maintenance with tight access
Apprentice training and light commercial jobs
In the box
1 × BRA-VP50S vacuum pump with 5 m hardwired cable and electronic solenoid
Oil charge
English operating instructions
24 month warranty
Specifications
Free air displacement 50 L/min approximately 1.5 CFM
Ultimate vacuum 15 microns approximately 2 Pa
Stages Two stage rotary vane
Motor power 250 W
Inlet ports ¼″ and 3/8″ SAE flare
Oil capacity 350 ml
Power 240 V 50 Hz
Power cord length 5 metres hardwired
Dimensions 290 × 125 × 235 mm
Net weight 6 kg
Gas ballast Yes
Solenoid valve Electronic anti backflow
Refrigerant compatibility A1 R134a R410A and A2L R32 R1234yf
Warranty 24 months
Key benefits
Lightweight footprint with clear sight glass and easy oil drain
Consistent micron pull down and protection during power loss
Great balance of portability and performance for daily callouts

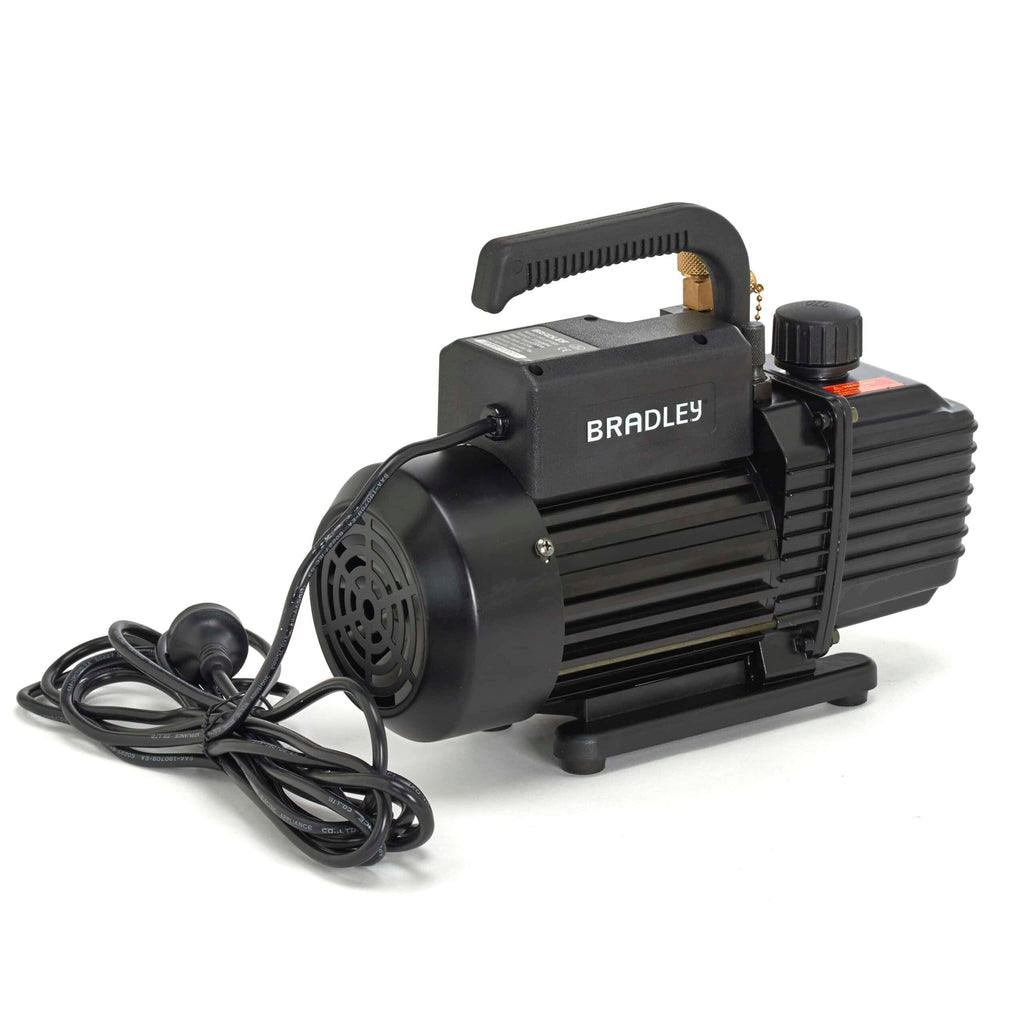

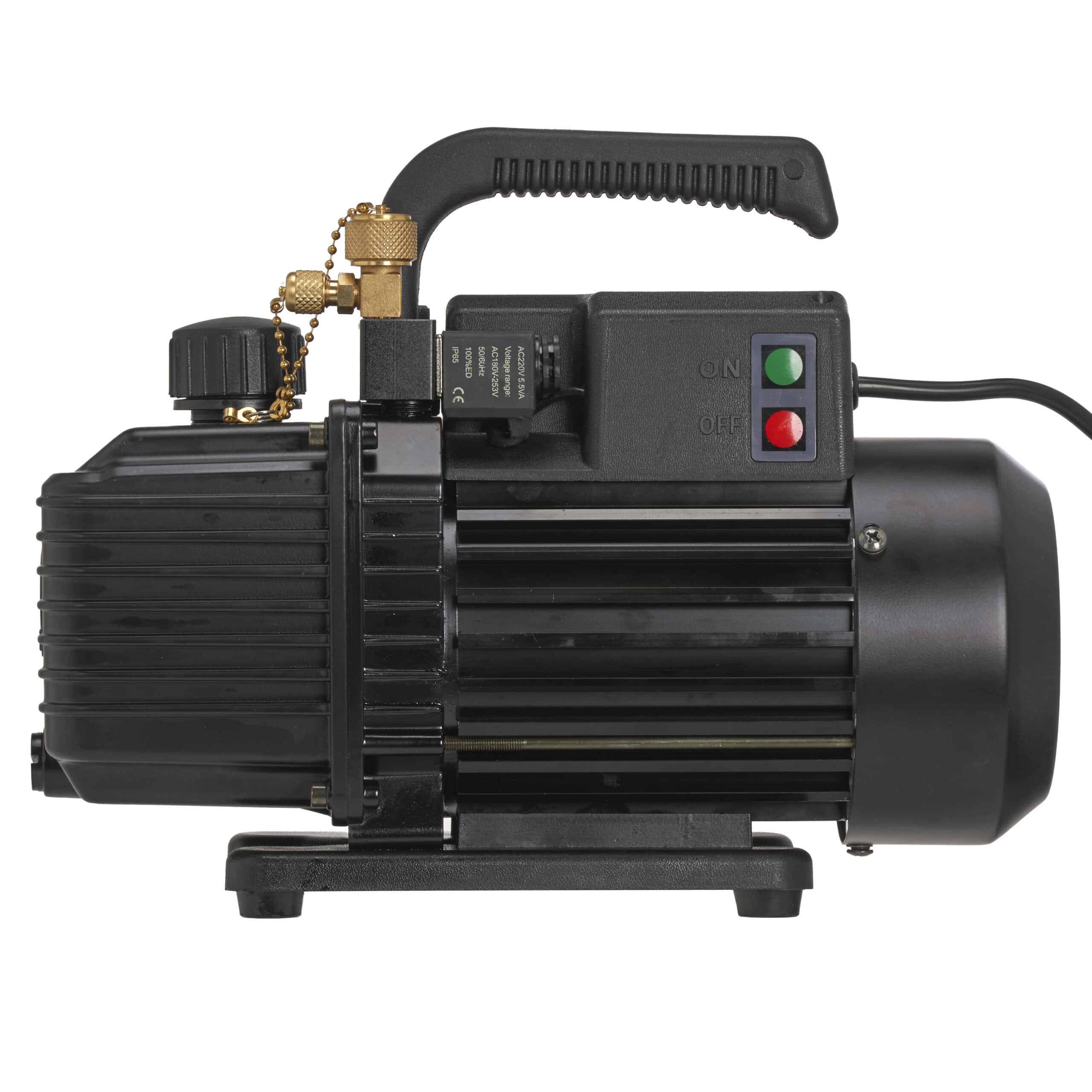

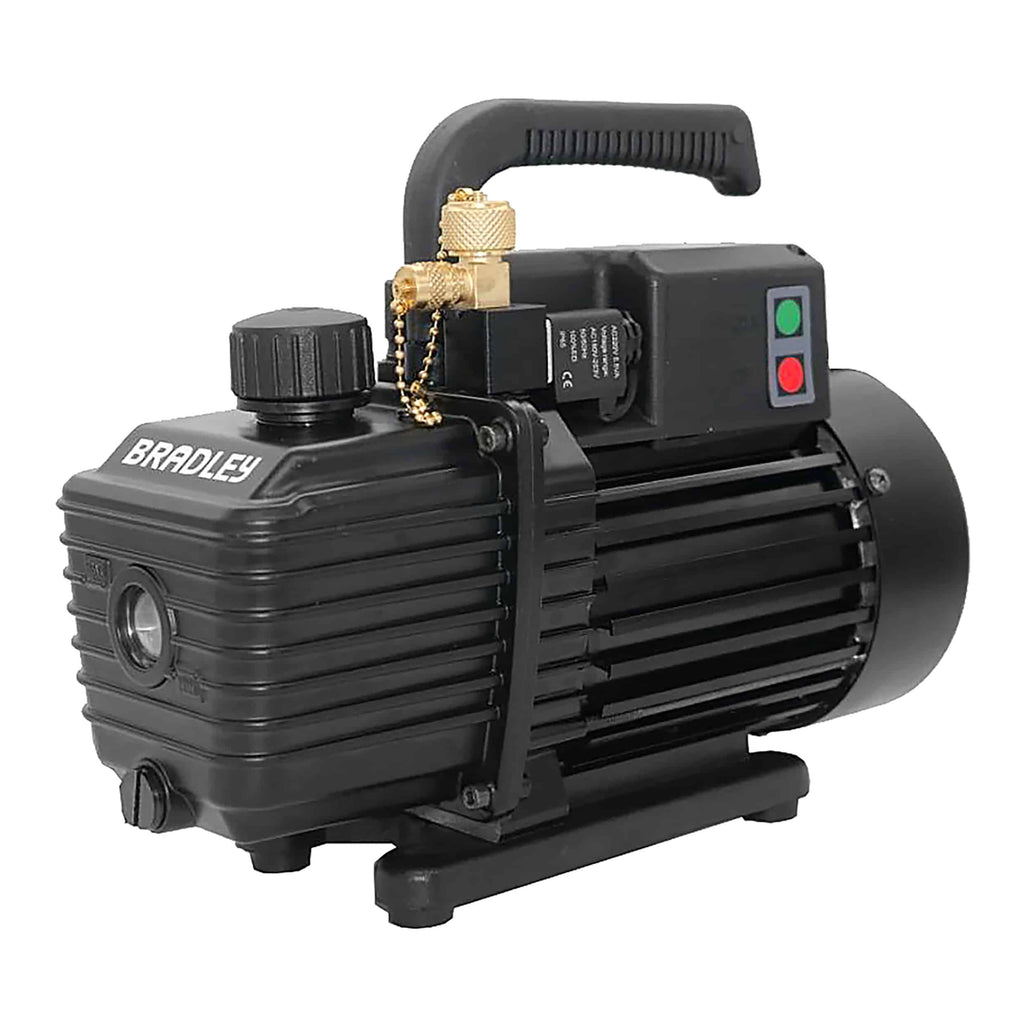

BRA-VP150S — 150 L/min Dual-Stage Vacuum Pump
The VP150S is the sweet spot for most tradies. Extra flow cuts evacuation times on multi head splits and small plant rooms while the 15 micron capability and electronic solenoid keep the system clean and compliant.
What it’s best for
Faster evacuations on larger residential and light commercial
VRF branch work and multi split installs
Busy service teams wanting fewer repeat visits
In the box
1 × BRA-VP150S vacuum pump with 5 m hardwired cable and electronic solenoid
Oil charge
English operating instructions
24 month warranty
Specifications
Free air displacement 150 L/min approximately 5 CFM
Ultimate vacuum 15 microns approximately 2 Pa
Stages Two stage rotary vane
Motor power 500 W
Inlet ports ¼″ and 3/8″ SAE flare
Oil capacity 400 ml
Power 240 V 50 Hz
Power cord length 5 metres hardwired
Dimensions 325 × 135 × 250 mm
Net weight 9.5 kg
Gas ballast Yes
Solenoid valve Electronic anti backflow
Refrigerant compatibility A1 R134a R410A and A2L R32 R1234yf
Warranty 24 months
Key benefits
Noticeably faster pull downs compared to compact pumps
Large sight glass and drain for clean quick oil changes
Trade ready reach with a 5 m power lead for roof and plant access
BRA-VP250S — 250 L/min Dual-Stage Vacuum Pump
High output evacuation for larger systems. The VP250S delivers 250 L/min flow and a stable 15 micron finish for commercial installs, changeouts, and demanding service schedules where time and reliability matter.
What it’s best for
Commercial and light industrial plant rooms
Large ducted and multi split installations
Technicians chasing the shortest practical evacuation time
In the box
1 × BRA-VP250S vacuum pump with 5 m hardwired cable and electronic solenoid
Oil charge
English operating instructions
24 month warranty
Specifications
Free air displacement 250 L/min approximately 9 CFM
Ultimate vacuum 15 microns approximately 2 Pa
Stages Two stage rotary vane
Motor power 700 W
Inlet ports ¼″ and 3/8″ SAE flare
Oil capacity 600 ml
Power 240 V 50 Hz
Power cord length 5 metres hardwired
Dimensions 360 × 155 × 270 mm
Net weight 15 kg
Gas ballast Yes
Solenoid valve Electronic anti backflow
Refrigerant compatibility A1 R134a R410A and A2L R32 R1234yf
Warranty 24 months
Key benefits
Maximum flow for big jobs and tight turnaround windows
Stable deep vacuum performance with clean oil management
Heavy duty build ready for daily commercial service
