Description

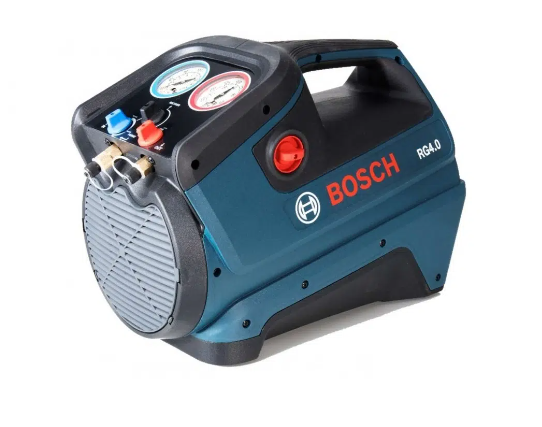

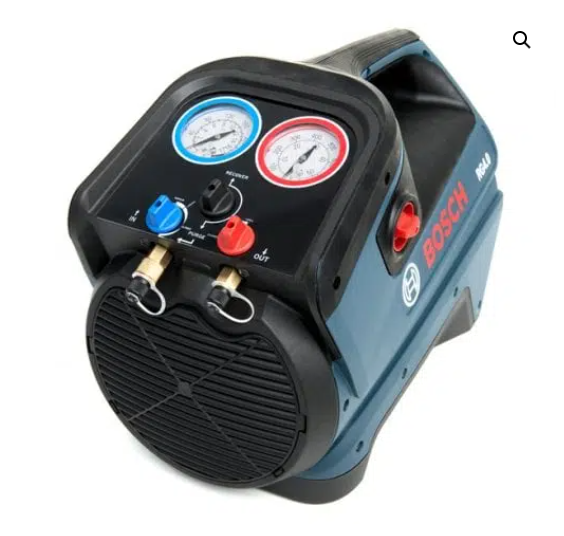

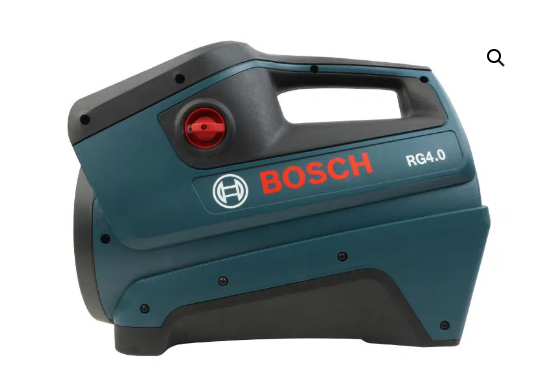

Bosch RG 4.0 is a high-pressure, oil-less refrigerant recovery unit built for licensed HVAC/R pros who need speed and reliability on A1, A2L and A3 gases. It’s compact, tough and simple to service — the kind of kit that keeps you moving between callouts, no worries.
Key Features & Trade Benefits
- A2L & A3 certified — externally certified for A1/A2L/A3; work confidently with R32, R1234yf, R290, R600a. Benefit: compliance and safety on modern low-GWP jobs.
- Oil-less single-cylinder compressor — handles liquid & vapour. Benefit: less maintenance, reliable performance.
- High push-pull rate up to 410.5 kg/hr — plus 122.1 kg/hr liquid and 10.7 kg/hr vapour. Benefit: quicker turnarounds and fewer bottlenecks.
- Low-pressure auto cut-off — smooth stops at target vacuum to reduce wear. Benefit: protects the machine and saves time.
- Robust housing with protective gauge cover — impact-resistant design for site use. Benefit: durability in utes and rooftops.
- High-flow fan, condenser-first airflow — maintains recovery rates in hot conditions. Benefit: steadier performance on 40-degree roof decks.
- Service-friendly layout — bottom-mount assembly; connections on opposite ends. Benefit: faster troubleshooting and hose management.
Why This Product Matters
Up on a tin roof in January, you want a recovery unit that won’t skip a beat. A Brisbane contractor told us the RG 4.0 kept pulling hard on R32 when a cheaper unit started thermal-limiting — this Bosch was a bloody ripper for hot-weather reclaim. That consistency means fewer delays, fewer call-backs, and happier clients.
Explore more reclaim rigs in our Recovery Units category for system-matched setups.
Pro Tip
For A2L/A3 jobs, use short 1/4″ hoses with ball valves and keep your cylinder on a calibrated scale. Pull out Schrader cores when safe to reduce restriction and you’ll see the RG 4.0 hit its stride — too easy. (Always follow site SWMS and ignition-source controls.)
Compatibility & System Info
- Certified for A1, A2L and A3 refrigerants; examples: R32, R1234yf, R22, R410A, R290, R600a and more.
- Max working pressure: 38.5 bar (550 psi).
- 230 VAC (RG 4.0A), 50–60 Hz; 1/2 HP; 14.6 kg.
For safe handling and storage of refrigerants and cleaning chemicals, refer to AIRAH’s Refrigerant Handling Code of Practice and your site procedures.
Local Jobsite Context (AU)
Whether you’re reclaiming on a tight inner-city split in Sydney or rolling a roof pack in Perth, the RG 4.0’s high-flow fan and sturdy housing help keep rates up and knock-downs down — fair dinkum performance in Aussie heat.
What’s Included
- 1 × Bosch RG 4.0 Recovery Unit
- 12-month warranty
Contents per product page.
Specifications
| Attribute | Detail |
|---|---|
| Model | RG 4.0 |
| Rated Voltage | RG 4.0A: 230 VAC ±10% |
| Frequency | 50/60 Hz |
| Power | 1/2 HP / 360 W |
| Rated Current | 5 A (RG 4.0A) |
| Max Push-Pull | 410.5 kg/hr |
| Max Liquid | 122.1 kg/hr |
| Max Vapour | 10.7 kg/hr |
| Compressor | Single-cylinder, oil-less |
| Circuit Breaker | 8 A (230 V) |
| Max Working Pressure | 38.5 bar (550 psi) |
| Dimensions (L×W×H) | 450 × 250 × 350 mm |
| Weight | 14.6 kg |
| Suitable Refrigerants | AHRI cat. III–V + A2L, A3 |
Key specs from manufacturer datasheet & product page.
Warranty & Returns
Backed by a 12-month manufacturer’s warranty. If anything’s not up to scratch, get in touch and we’ll sort it quickly. Change-of-mind returns are available within store policy timeframes when unused and in resalable condition.
FAQs
Is the RG 4.0 approved for A2L and A3 refrigerants?
Yes — it’s externally certified for A1/A2L/A3 classes. Always follow site safety and local regulations when working with flammables.
What recovery rates can I expect?
Max capacity figures are up to 410.5 kg/hr push-pull, 122.1 kg/hr liquid, and 10.7 kg/hr vapour (test-method dependent). Real-world rates vary with hose length, cylinder temperature and ambient conditions.
Does it shut off automatically?
It features a low-pressure cut-off for smooth stops at target vacuum, plus an automatic reset HP cut-out.
Related Products
- Imperial 150 cm Hose Set (1/4″, with ball valves) — helpful for reducing losses and restriction.
- C&D Straight Ball Valve 1/4″ SAE — handy shut-off at the hose end.
- Fieldpiece SRS3 Wireless Refrigerant Scale — track fill weight and stay audit-ready.
