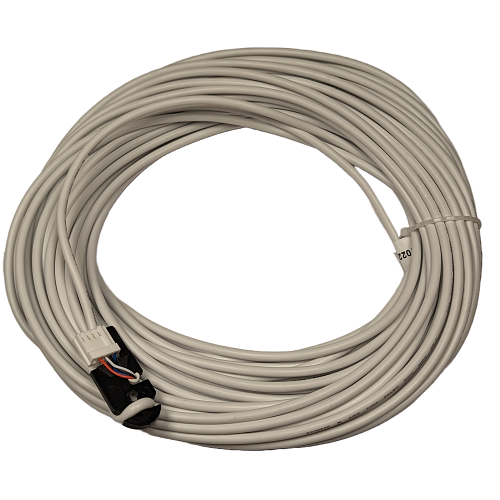

Bonaire Wiring Loom Connection Cable 20M

This Bonaire 20m wiring loom is a critical spare for HVAC techs and competent DIYers maintaining evaporative cooling units. It ensures a solid, low-voltage connection between your Bonaire wall controller and the main unit, especially useful for those longer runs on larger homes or commercial installs where you often need to snake cables through tight roof spaces.

You know how important a reliable connection is, especially during a hot Australian summer when downtime isn't an option.

Best For

• Evaporative cooler service technicians
• HVAC maintenance teams
• Competent DIY homeowners

Compatibility

This wiring loom is designed specifically for Bonaire evaporative cooling systems, including models compatible with the Bonaire PN 6011606SP. It features a 5-pin low-voltage connector, commonly used for connecting wall controllers or other control components. If you're running a different model, check fittings and specs before ordering.

Features

• Genuine Bonaire spare part, ensuring proper fit and function
• Generous 20-metre length for various install layouts and distances
• Low voltage application for safe and reliable control signal transmission
• 5-pin connector designed for specific Bonaire system compatibility

Technical Specifications

What's in the Box

• 1x Bonaire Wiring Loom Connection Cable (20m, 5-pin)

Using It on the Job

1. Always isolate power to the evaporative cooler at the mains before starting any electrical work. Lock out the circuit if possible.
2. Carefully disconnect the old wiring loom from both the wall controller and the main unit, noting the pin orientation if not keyed.
3. Route the new 20m loom, ensuring it's protected from physical damage, excessive heat, and moisture. Secure it properly with cable ties or clips.
4. Connect the new loom firmly to both the controller and the unit. Double-check all connections for correct seating and pin alignment.
5. Restore power and test the evaporative cooler's functions from the wall controller to confirm full operation.

Limitations & Safety Notes

• Only use this loom with compatible Bonaire low-voltage evaporative cooling systems.
• Do not use on high-voltage circuits or for applications other than its intended purpose.
• Ensure all electrical work is performed by a qualified person, or a competent DIYer, following Australian standards and Safe Work guidance.
• Always disconnect power before attempting installation or removal.

Tradie Pro Tip

When running these longer looms, especially in a roof space, tape your new cable to the old one if possible. It makes pulling it through so much easier and saves you from crawling back and forth. Just make sure the ends are clear of obstructions.

Pair With

Pair with Bonaire wall controllers and other Bonaire spare parts to keep your evaporative cooler running efficiently and reliably.
