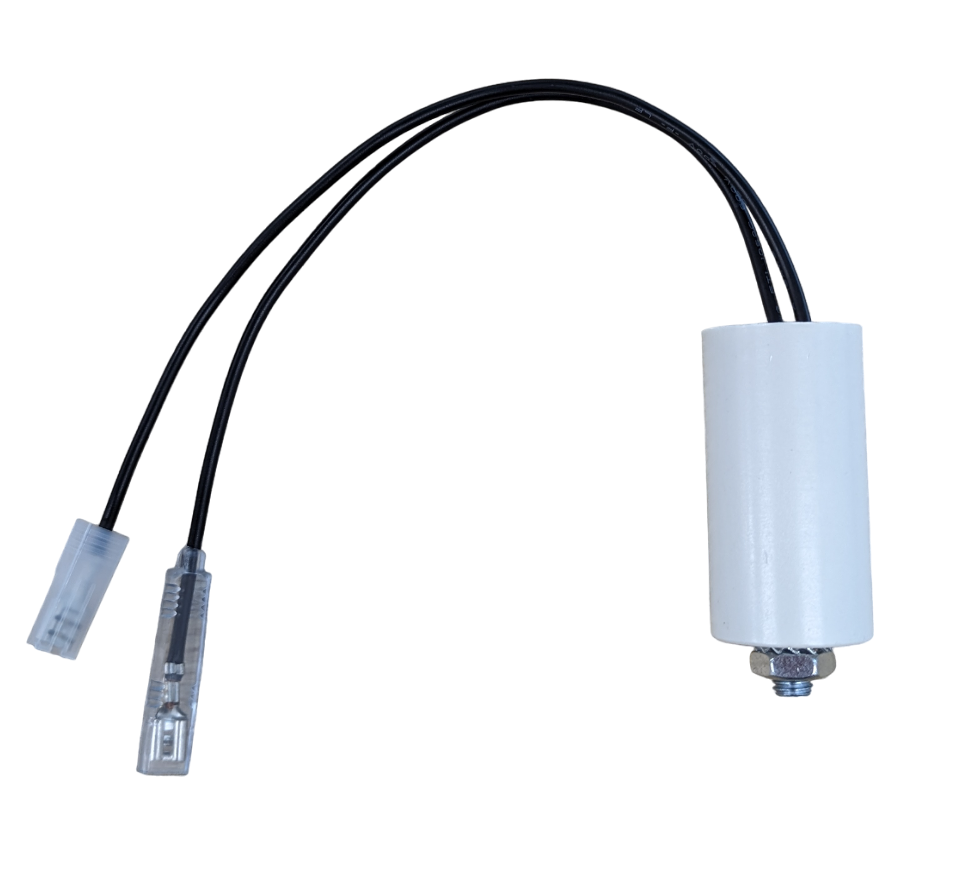

Bonaire Vulcan Quasar Furnace Fan Capacitor 1.0uF

This Bonaire Vulcan Quasar Furnace Fan Capacitor is a direct replacement part, crucial for getting your furnace's fan motor spinning correctly again. It's a small but vital component that helps ensure your heating system runs efficiently, especially when those winter mornings hit hard.

Often, a failing capacitor is the first thing we check when a fan motor hums but doesn't start, or struggles to get up to speed. Swapping one out is usually a quick fix that saves you from a full motor replacement if caught early.

Best For

• HVAC service technicians replacing faulty furnace components.
• Heating system specialists maintaining Bonaire Vulcan Quasar units.
• Competent DIY owners troubleshooting fan motor issues on their own Bonaire furnaces.
• Apprentices learning about electrical components in heating systems.

Compatibility

This 1.0uF capacitor is specifically designed as a direct replacement for Bonaire Vulcan Quasar wall furnaces, matching the original Bonaire Part Number 4789922SP. It's built to spec for these specific heating units. If you're running a different model, check fittings and specs before ordering.

Features

• Direct Replacement: Matches original Bonaire PN 4789922SP for a seamless fit.
• 1.0uF Capacitance: Correct rating for optimal fan motor starting and running.
• Reliable Performance: Helps restore full fan functionality to your furnace.
• Essential Component: Crucial for the efficient operation of your Bonaire Vulcan Quasar furnace fan.

Technical Specifications

What's in the Box

• One (1) Bonaire Vulcan Quasar Furnace Fan Capacitor 1.0uF (CT4789922SP)

Using It on the Job

1. Isolate Power: Always ensure the furnace's main power supply is completely switched off at the circuit breaker and locked out before starting any work. Verify with a multimeter.
2. Locate Capacitor: Find the existing fan capacitor, usually near the fan motor or control board.
3. Discharge Safely: Use an insulated screwdriver or a purpose-built capacitor discharge tool to safely discharge the old capacitor before handling. Even small capacitors can hold a dangerous charge.
4. Disconnect & Replace: Note wiring connections, then carefully disconnect the old capacitor. Connect the new 1.0uF Bonaire capacitor, ensuring all terminals are secure.
5. Re-secure & Test: Mount the new capacitor firmly. Restore power and test the fan operation, ensuring it starts smoothly and runs as expected.
6. Post-Service Check: Double-check all connections and confirm the furnace is operating correctly before leaving the site.

Limitations & Safety Notes

• Always isolate and lock out power to the appliance before commencing any electrical work.
• Capacitors can store electrical charges even after power is off; always discharge them safely before handling.
• Only use this capacitor for Bonaire Vulcan Quasar furnaces requiring a 1.0uF replacement (Bonaire PN 4789922SP).
• Installation should only be performed by a qualified technician or competent individual with appropriate electrical safety knowledge.
• Follow Australian electrical safety standards and Safe Work guidance.

Tradie Pro Tip: Before you even think about touching a capacitor, grab your multimeter and double-check it's fully discharged. Those little jolts are no fun, especially when you're in a tight spot on a hot Australian roof. Safety first, every time.

Pair With

For any electrical work involving capacitors, you'll want a good quality multimeter for testing and discharge, along with general electrical hand tools. Consider stocking up on other Bonaire Heating spare parts like control boards or fan motors to be prepared for common furnace breakdowns.
