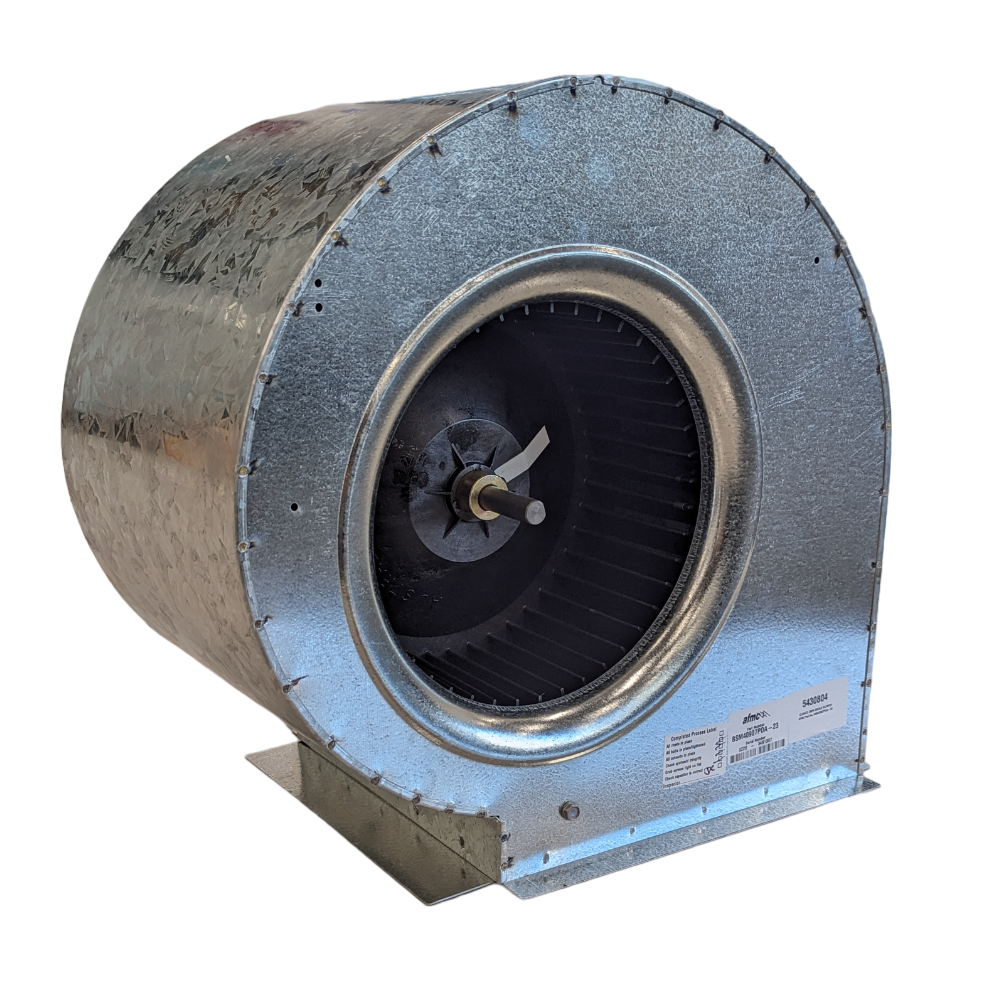

Bonaire Vulcan Gas Heater Fan Assembly 750W

This Bonaire Vulcan Gas Heater Fan Assembly is a direct replacement part, helping technicians and competent DIY owners restore essential airflow to faulty heating units. It's a common issue after years of running, especially during those long Australian winter nights when a heater is working overtime.

This kit ensures your ducted gas heater keeps pushing warmth through the system efficiently, maintaining comfort when it matters most.

Best For

• HVAC service technicians
• Gas appliance repairers
• Experienced home owners maintaining Bonaire Vulcan gas heaters

Compatibility

This fan assembly is specifically designed for Bonaire Vulcan Gas Heaters. It’s a 750W motor setup, matching the original specifications for these units. If you're running a different model, check fittings and specs before ordering.

Features

• Genuine Bonaire Fan Assembly Kit
• Robust 750 Wattage Motor for reliable performance
• Includes pre-matched capacitor for correct operation
• Comes with mounting plate for straightforward installation
• Designed as a direct replacement part (Bonaire PN 9263802SP)

Technical Specifications

What's in the Box

• Bonaire Vulcan 750W Fan Motor
• Mounting Plate
• Motor Capacitor

Using It on the Job

1. Always isolate power to the Bonaire gas heater at the main switchboard and apply a lockout tag before starting any work.
2. Access the existing fan assembly within the heater cabinet, typically found in the main air handler section.
3. Carefully disconnect all wiring from the old motor and capacitor, making clear notes or taking photos of their positions.
4. Unbolt and remove the old fan assembly from its mounting points.
5. Install the new CTSPS9263802SP fan assembly, ensuring correct alignment and secure fastening.
6. Reconnect all wiring according to your notes, double-checking each connection for tightness and accuracy before restoring power.
7. Restore power and test the heater operation to confirm proper fan function and airflow, listening for any unusual noises.

Limitations & Safety Notes

• Installation requires basic electrical knowledge and strict adherence to safety protocols.
• Always isolate power before attempting any service or repair work on heating appliances.
• Ensure the replacement part matches the exact original specifications of your Bonaire Vulcan heater to prevent compatibility issues.
• Follow all relevant Australian electrical safety standards and Safe Work guidance during installation.

Before you even unbolt the old fan, grab your phone and snap a few pictures of the wiring. It saves a headache when you're hooking up the new one, especially if the wire colours aren't exactly the same or if you get distracted on the job.

Pair With

Pair with a new ignitor or flame sensor for a more comprehensive heater overhaul, or check our range of Bonaire wall controllers to upgrade your system's interface.
