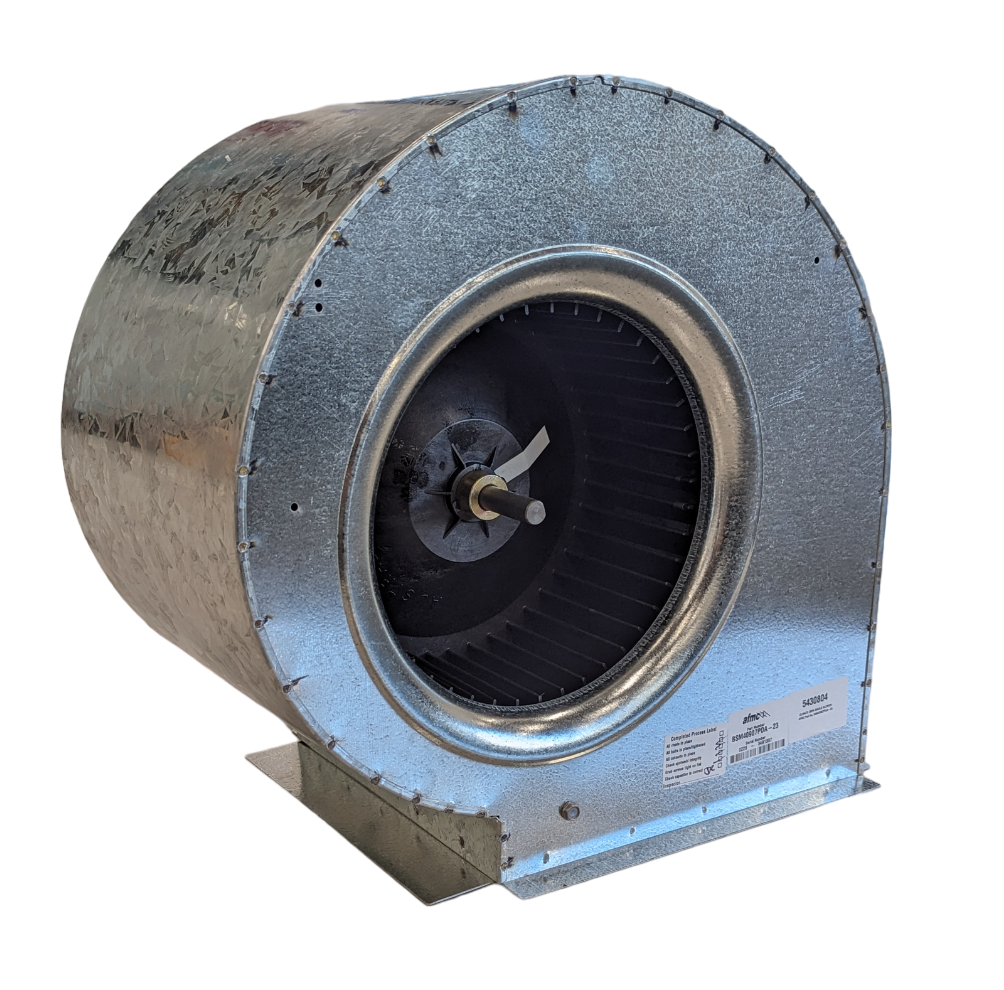

Bonaire Vulcan Gas Heater Fan Assembly 600 Watt

This Bonaire Vulcan Gas Heater Fan Assembly (CTSPS9243802SP) is a straight replacement part for keeping the warm air moving through ducted systems. When a fan motor starts humming or seizing up, especially in the middle of a cold Australian winter, you know it's time to get it sorted quickly.

Swapping out a full assembly like this saves time and gets the heat back on fast, ensuring your customers or family stay warm.

Best For

• HVAC technicians working on ducted gas heating systems
• Gas appliance service and maintenance teams
• Competent DIY owners maintaining their Bonaire ducted heater

Compatibility

This fan assembly is designed specifically for Bonaire Vulcan gas heaters. This 600W fan assembly (Bonaire PN 9243802SP) ensures proper airflow and system operation as a direct fit replacement. If you're running a different model, check fittings and specs before ordering.

Features

• Direct replacement fan assembly kit for Bonaire Vulcan heaters.
• Features a robust 600 Watt motor for reliable air circulation.
• Includes the necessary capacitor, often pre-wired for quicker installation.
• Genuine Bonaire Part Number 9243802SP for guaranteed fit and function.

Technical Specifications

What's in the Box

• Bonaire 600W Fan Assembly Motor
• Mounting Plate
• Capacitor

Using It on the Job

1. Always isolate power to the ducted gas heater at the mains and confirm zero voltage with a multimeter before starting any work.
2. Access the existing fan assembly, which is typically found in the heater unit's air handler section.
3. Carefully disconnect all wiring, making clear notes or taking photos of connections for the new assembly.
4. Remove the old fan assembly and install the new CTSPS9243802SP unit, ensuring it seats correctly on the mounting plate.
5. Reconnect all electrical wiring, double-checking secure terminals and proper polarity.
6. Restore power to the heater and test the fan operation across all modes to confirm correct function and adequate airflow.

Limitations & Safety Notes

• Always disconnect power to the unit before commencing any work to prevent electrical hazards.
• Installation should only be performed by a licensed professional or competent person with appropriate electrical and gas qualifications.
• Ensure all electrical connections are secure and insulation is intact before restoring power to the appliance.
• This part is specifically designed for Bonaire Vulcan gas heaters that utilise a 600W fan motor; verify compatibility before purchase.
• Always follow manufacturer's instructions and local Australian safety regulations during installation and servicing.

Tradie Pro Tip

Before you even start pulling the old one out, give the area a good vacuum and check the fan scroll for any debris. A clean housing helps the new fan run quieter and last longer. Also, make sure to mark your wiring connections, even with a direct replacement, it saves a headache later.

Pair With

For comprehensive gas heater maintenance, consider adding some general electrical test leads and maybe a spare control board from our "Bonaire Heating" spares range. A quality multimeter is also essential for safe diagnosis.
