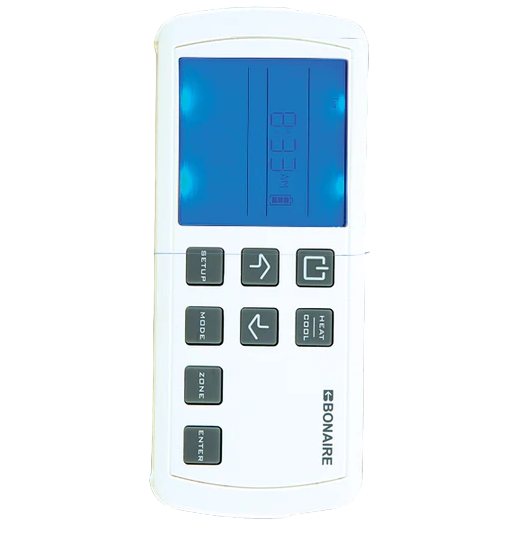

Bonaire Navigator Hardwired Wall Controller

This Bonaire Navigator Hardwired Wall Controller, part number CT5431029SP, is a direct replacement for your existing unit, helping HVAC techs and competent homeowners restore full control to Bonaire cooling and heating systems.

Fixed in the living area, it gives you central command over your Bonaire ducted gas heater or evaporative cooler, especially useful during those hot Australian summers or chilly winters. I've seen plenty of old controllers play up after years of use, and a straight swap with a genuine part like this saves a lot of headaches on the job.

Best for: HVAC technicians, service and maintenance teams, and competent DIY owners working on Bonaire cooling and heating systems.

Compatibility

This hardwired controller is designed for use with multiple Bonaire coolers and Bonaire units featuring 3, 4, 5, and 6 Star Gas Central heating, as well as Bonaire Dual Cycle systems. It's a direct match for Bonaire part numbers 5431029SP and 10003572.

If you're running a different model, check fittings and specs before ordering.

Features

• Hardwired connection for reliable, fixed operation.
• Allows all temperature settings and system changes from a single, fixed location.
• Includes wireless control features for potential system integration.
• Compatible with Bonaire 3, 4, 5, and 6 Star Gas Central heating systems.
• Suitable for multiple Bonaire evaporative coolers and Bonaire Dual Cycle units.
• Direct replacement for Bonaire manufacturer part numbers 5431029SP and 10003572.

What's in the Box

• 1 x Bonaire Navigator Hardwired Wall Controller (CT5431029SP / 10003572)

Using It on the Job

1. Safety First: Always isolate power to the Bonaire unit at the main switchboard before starting any work on the controller.
2. Access Old Controller: Carefully unclip or unscrew the existing wall controller from its mounting plate.
3. Disconnect Wiring: Take a photo or make a clear diagram of the existing wiring connections, then safely disconnect the old unit's wires.
4. Install New Controller: Connect the new CT5431029SP controller following your wiring notes, ensuring all terminals are secure and correctly matched.
5. Mount and Test: Secure the new controller to the wall, restore power to the system, and thoroughly test all heating, cooling, and fan functions to ensure proper operation.

Limitations & Safety Notes

• This controller is specifically designed for compatible Bonaire cooling and heating systems only; it will not work with other brands.
• Always ensure the main power supply to the HVAC system is isolated and locked out before attempting any installation or service work.
• Installation should only be performed by a qualified technician or a competent individual with knowledge of electrical wiring, following manufacturer guidelines and Australian electrical standards.
• Check your existing controller's part number or your Bonaire system's manual to confirm compatibility before purchase.

Before you yank off the old controller, snap a quick photo of the wiring. Even if you've done a hundred of these, it's a cheap insurance policy to get the wires back in the right spot first go.

Pair With

Pair with other genuine Bonaire spare parts like control boards or fan motors, and always have a multimeter handy for diagnostics, available in our HVAC electrical tools section.
