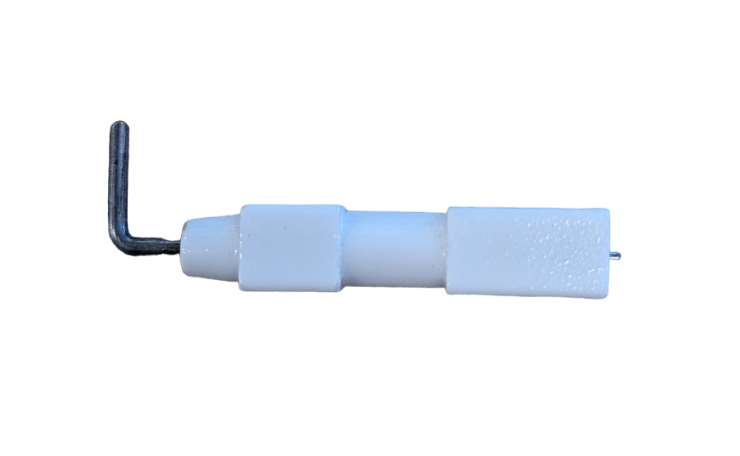

Bonaire Ducted Gas Heater Electrode Spark

This Bonaire electrode spark, part number CTSPS0081804SP, is your direct replacement for specific Bonaire ducted gas heaters. Crucial for reliable ignition, it ensures your customer's heating system fires up properly, especially on those cold Aussie winter mornings when you don't want a call-out for a no-start.

A worn or cracked electrode can lead to intermittent ignition or complete failure. Using a quality replacement like this genuine Bonaire part is essential for consistent performance and safety.

Best For

• HVAC Technicians
• Licensed Gas Fitter Plumbers
• Maintenance Teams for Ducted Gas Heating Systems

Compatibility

This electrode spark (Bonaire PN 0081804SP) is designed specifically for Bonaire ducted gas heaters. It's a genuine Bonaire spare part, ensuring a perfect fit and reliable operation with compatible models.

If you're running a different model, check fittings and specs before ordering.

Features

• Genuine Bonaire spare part for assured compatibility and performance.
• Direct replacement for Bonaire Part Number 0081804SP.
• Features a 45-degree angle for precise installation and optimal spark positioning.
• Built to withstand the high temperatures and continuous operation cycles of ducted gas heaters.

Technical Specifications

What's in the Box

• 1 x Bonaire Electrode Spark (CTSPS0081804SP)

Using It on the Job

1. Safety First: Before starting any work, always isolate power and gas supply to the heater. Follow all lockout/tagout procedures and verify zero energy state.
2. Access & Inspection: Carefully open the heater's combustion chamber access panel. Inspect the old electrode for cracks, carbon build-up, or signs of wear indicating failure.
3. Removal: Disconnect the ignition lead from the old electrode. Carefully unclip or unbolt the old electrode from its mounting point, noting its orientation.
4. Installation: Mount the new Bonaire electrode, ensuring the 45-degree angle aligns correctly for proper spark gap. Connect the ignition lead securely, making sure it's fully seated and has good contact.
5. Testing: Restore gas and power. Perform a test fire sequence, checking for a strong, consistent spark and reliable ignition. Monitor for any gas leaks around disturbed fittings using an approved leak detector.

Limitations & Safety Notes

• Installation and service of gas appliances must only be performed by a licensed gas fitter in accordance with AS/NZS 5601 and local regulations.
• Always ensure the gas and electrical supply are isolated and verified before commencing work on any gas appliance.
• Only use this part for the specified Bonaire ducted gas heater models that require Bonaire PN 0081804SP.
• Regularly inspect electrodes for wear; a faulty spark can lead to delayed ignition, inefficient operation, or unsafe gas build-up.

When you're replacing this electrode, take a moment to also check the flame sensor and the condition of the combustion fan. Often, issues in one area can point to general wear in the whole ignition system, so a quick visual can save a follow-up call.

Pair With

Pair with Bonaire control boards and a quality gas pressure gauge for comprehensive diagnostics and servicing of ducted heating systems.
