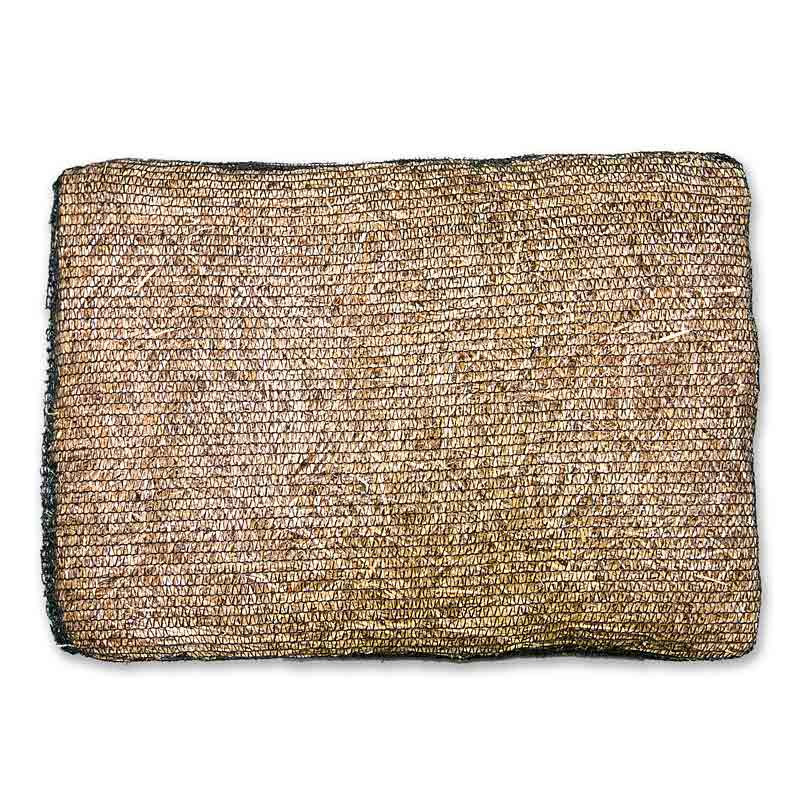

Bonaire DS01 DS11 DS21 DS31 Evaporative Cooler Filter Pads

These wood-wool/aspen style filter pads are designed as a direct replacement for older Bonaire DS series evaporative coolers, helping maintain their cooling performance through hot Australian summers.

Keeping your evaporative cooler's pads clean and in good nick is crucial for efficient operation and air quality, especially when the dust gets thick or the humidity drops on the job site. This set helps keep your unit running right.

Best For

• Owners and service techs maintaining Bonaire DS01, DS11, DS21, and DS31 evaporative coolers.
• Seasonal replacement to ensure optimal cooling and air filtration.
• Anyone needing a reliable, direct-fit filter pad set for these older models.

Compatibility

These filter pads are specifically made to suit some older Bonaire evaporative cooler models:

• Bonaire DS01
• Bonaire DS11
• Bonaire DS21
• Bonaire DS31

The approximate pad size is 700mm x 500mm. If you're running a different model, or are unsure, double-check your existing pad dimensions before ordering.

Features

• Direct Fit: Designed as a replacement for specific older Bonaire DS series evaporative coolers.
• Wood-Wool / Aspen Style: Effective at absorbing water and promoting efficient evaporation.
• Standard Dimensions: Each pad measures approximately 700mm x 500mm for a proper fit.
• Set of Four: Supplied as a complete set to refresh all pads in your unit.

Technical Specifications

What's in the Box

• Set of (4) Wood-wool / Aspen Style Filter Pads (approx. 700mm x 500mm each)

Using It on the Job

1. Isolate power to the evaporative cooler at the mains and follow lockout/tagout procedures before commencing any work.

2. Carefully remove the cooler's access panels and unclip/remove the old, worn-out filter pads. Note their orientation.

3. Clean the internal sump and water distribution system to remove any scale, algae, or debris while the pads are out.

4. Install the new filter pads, ensuring they are seated correctly and securely in their frames. Check that the water distribution tubes are clear and positioned correctly over the pads.

5. Replace access panels and restore power to the unit. Test operation to ensure proper water flow and cooling.

Limitations & Safety Notes

• Not suitable for Bonaire evaporative cooler models other than those specified (DS01, DS11, DS21, DS31).
• Always isolate power before performing any maintenance or replacing parts on an evaporative cooler.
• Regularly inspect pads for wear, blockages, or excessive mineral build-up to maintain efficiency and air quality.
• Follow all manufacturer instructions and Safe Work Australia guidelines during installation and maintenance.

Tradie Pro Tip

When you're swapping out these pads, take an extra 10 minutes to give the water tray and pump a good clean. It prevents algae and scale build-up, which means less call-backs and better cooling performance for the customer.

Pair With

Pair with a replacement evaporative cooler pump, float valve assembly, or drain and overflow fitting for a complete service on your Bonaire unit. Browse our evaporative cooler parts section for more.
