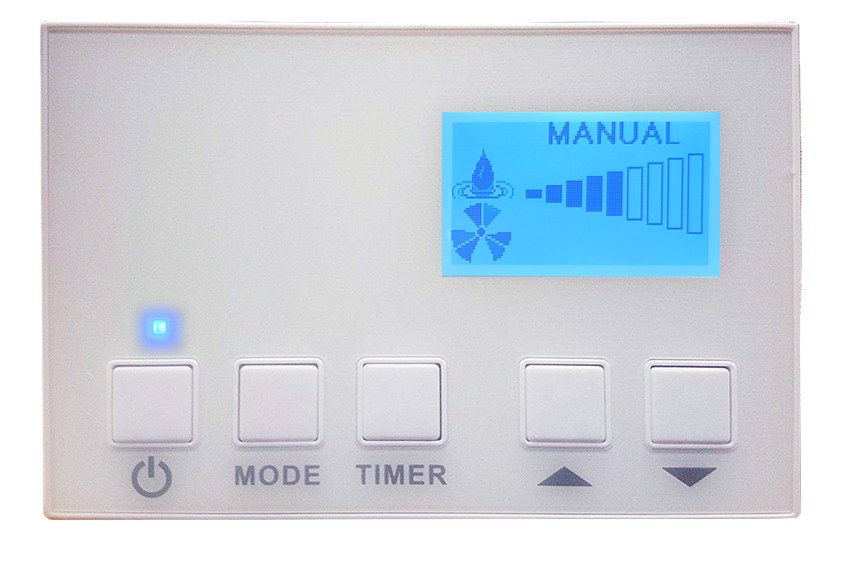

Bonaire Digital/Analogue Thermostat

This Bonaire Digital/Analogue Thermostat (CT-TEK7DAT) is your go-to for controlling both Bonaire ducted heaters and evaporative coolers. It's a handy spare part or replacement for techs needing a reliable interface for these common Australian systems.

Swapping out a wall controller on a hot summer day, or in the middle of winter, needs to be a quick job. This unit gets you sorted without fuss.

Best For

• Bonaire service technicians
• HVAC maintenance teams working on residential systems
• Competent DIY homeowners maintaining Bonaire systems

Compatibility

This thermostat is designed specifically for Bonaire ducted heating and evaporative cooling units. It's compatible with Bonaire TEK600, TEK7EC, and TEK467 Control Boards.

It handles both 4-pin and 5-pin digital/analogue connections, making it versatile for different models. If you're running a different model, check fittings and specs before ordering.

Features

• Digital/Analogue Functionality: Offers broad compatibility with Bonaire heating and cooling systems.
• Dual Pin Support: Compatible with both 4-pin and 5-pin digital/analogue connections.
• Direct Replacement: Suits Bonaire TEK600, TEK7EC, and TEK467 control boards.
• System Versatility: Works with both Bonaire ducted heaters and evaporative cooling units.

What's in the Box

• 1x Bonaire Digital/Analogue Thermostat (CT-TEK7DAT)

Using It on the Job

1. Isolate Power: Always isolate power to the Bonaire unit at the main switchboard and confirm dead with a reliable voltage tester before starting any work. Use lockout procedures if available.
2. Remove Old Unit: Carefully detach the existing thermostat from the wall. Take a photo of the wiring connections before disconnecting to aid reassembly.
3. Connect New Thermostat: Connect the new CT-TEK7DAT thermostat, ensuring the 4-pin or 5-pin connection aligns correctly with your system's wiring.
4. Mount Securely: Mount the new thermostat firmly to the wall in the desired location.
5. Test Operation: Restore power to the unit and test all thermostat functions, including heating, cooling, and fan modes, to ensure correct operation.

Limitations & Safety Notes

• This thermostat is only for use with specified Bonaire ducted heating and evaporative cooling units.
• Always ensure power is fully isolated at the switchboard before commencing any electrical work.
• Follow the manufacturer's specific installation instructions for your Bonaire unit model.
• Not a universal thermostat – check compatibility with your specific Bonaire control board (TEK600, TEK7EC, TEK467) before purchasing.

Before you even touch a screwdriver, always snap a quick photo of the existing wiring on the old wall controller. It'll save you a heap of head-scratching when you're hooking up the new one, especially with those multi-pin plugs.

Pair With

Pair with Bonaire control boards and other Bonaire heating or cooling spares to keep your systems running efficiently and reliably.
