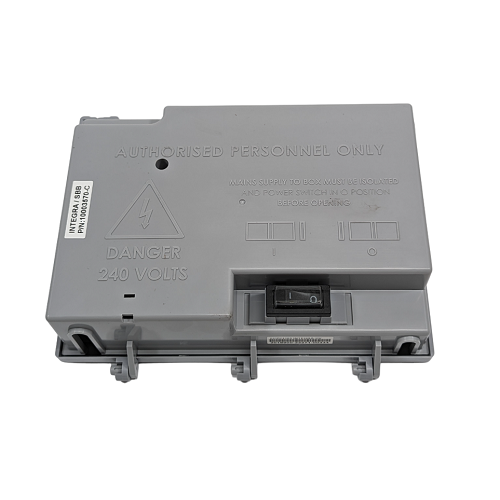

Bonaire Control Board SBB/INTEGRA II

This Bonaire Control Board is the genuine SBB/INTEGRA II replacement part, essential for getting your evaporative cooler back up and running. It manages all the core functions, from pump operation to fan speeds, keeping your system working efficiently through those hot Australian summers.

Replacing a faulty control board is a common fix, and having the right part makes the job straightforward. You'll know it's time for a new one when your unit starts acting up, like not turning on, fan issues, or pump problems.

Best For

• HVAC service technicians
• Evaporative cooler repair and maintenance teams
• Competent DIY owners replacing a faulty board

Compatibility

This control board is specifically designed to suit Bonaire SBB/INTEGRA II evaporative cooling units. Please note, it is not compatible with Bonaire Aquamiser models. If you're running a different model, check fittings and specs before ordering.

Features

• Genuine Bonaire replacement part ensures correct fit and function.
• Direct replacement for SBB/INTEGRA II control boards.
• Restores full control over fan speeds, pump, and water management.

What's in the Box

• 1 x Bonaire Control Board SBB/INTEGRA II (Part No. SPS10003570SP)

Using It on the Job

1. Isolate Power: Always begin by switching off the main power to the evaporative cooler at the switchboard. Use lockout/tagout procedures if available.
2. Access Panel: Open the cooler's control panel or access cover to expose the existing control board.
3. Document Connections: Take photos or make a diagram of all wiring connections to the old board. This is crucial for correct reassembly.
4. Disconnect & Remove: Carefully disconnect all wires and mounting screws, then remove the old, faulty control board.
5. Install New Board: Mount the new Bonaire SBB/INTEGRA II board in place and reconnect all wiring as per your documentation. Double-check every connection.
6. Test System: Restore power to the unit and perform a full functional test of all modes (fan speeds, pump, dump valve, etc.) to ensure proper operation.

Limitations & Safety Notes

• Always isolate power before attempting any electrical work on an evaporative cooler.
• This board is designed for Bonaire SBB/INTEGRA II units only; using it in incompatible models may cause damage.
• Ensure all connections are secure and correct to prevent electrical faults.
• Refer to the manufacturer's service manual for specific wiring diagrams and troubleshooting steps.

Tradie Pro Tip: Before you swap out a control board, always check the simpler stuff first – blown fuses, loose connections, or even a faulty wall controller can mimic board issues. Save yourself a call-back!

Pair With

Pair this control board with a new Bonaire Wall Controller if yours is showing its age, and consider checking your Bonaire Capacitors or Pump for wear while you have the unit open. A bit of preventative maintenance goes a long way.
