What is the capacitance rating of this Bonaire capacitor?

This Bonaire capacitor has a rating of 15MFD (Microfarads), which is essential for ensuring the correct electrical properties for your evaporative cooler's motor.

Which Bonaire models is this capacitor compatible with?

This capacitor, part number CTSPS0160185SP and Bonaire PN 0160185SP, is compatible with Bonaire evaporative coolers that specify a 15MFD run capacitor with leads. Always check your unit's service manual or the existing capacitor for exact part number matching.

Does this capacitor come with pre-fitted leads?

Yes, the Bonaire 15MFD capacitor CTSPS0160185SP comes with pre-fitted leads. This makes for a more straightforward installation, as you won't need to crimp or attach new wires to the capacitor terminals.

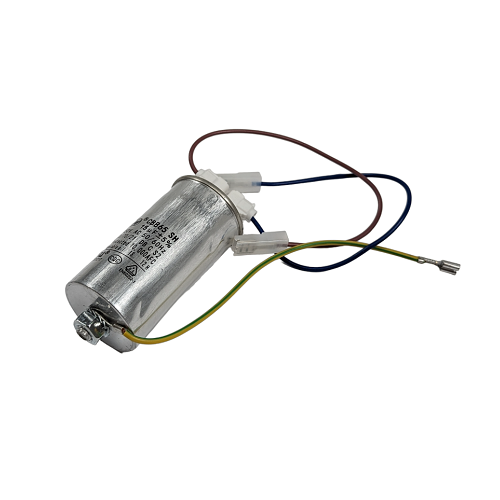

Bonaire Capacitor 15MFD With Leads CTSPS0160185SP

Name: Bonaire Capacitor With Leads 15MFD
Brand: Bonaire
SKU: CTSPS0160185SP
Price: 19.00 AUD
Availability: InStock

🛠️ Need the Right HVAC Tool for the Job?

Whether you're quoting a bulk order or chasing hard-to-find tools, we’re here to help.

Get a fast, personalised quote—no pressure, no spam!
Fill out the form below and we’ll get back to you ASAP.

📩 Request a Quote

This Bonaire 15MFD capacitor with leads, part number CTSPS0160185SP, is a direct replacement component essential for getting your Bonaire evaporative cooler's fan or pump motor running smoothly. A faulty capacitor is a common culprit for a motor struggling to start on a hot Australian day, leading to poor cooling when you need it most.

Keeping a spare of these on hand, especially during peak summer, can save you a call-out and get your cooler back online fast.

Best For

Maintenance and repair of Bonaire evaporative cooling units.
Replacing a failing or failed motor run capacitor in an evaporative cooler.

Compatibility

This 15MFD capacitor is designed for use in Bonaire evaporative coolers that require a run capacitor with part number 0160185SP. If you're running a different model, check fittings and specs before ordering.

Features

15MFD (Microfarad) Rating: Provides the correct capacitance for reliable motor start and continuous operation.
Pre-fitted Leads: Simplifies installation with ready-to-connect wiring.
Genuine Bonaire Part: Ensures correct fit, performance, and longevity within Bonaire evaporative cooling systems (PN 0160185SP).
Durable Construction: Built to withstand the typical operating conditions inside an evaporative cooler.

What's in the Box

1 x Bonaire Capacitor with Leads (15MFD, Part No. CTSPS0160185SP / 0160185SP)

Using It on the Job

Isolate Power: Always turn off and lockout/tagout the main power supply to the evaporative cooler at the switchboard. Verify zero voltage with a rated multimeter before touching any components.
Discharge Old Capacitor: Carefully discharge the old capacitor by shorting its terminals with an insulated screwdriver or a dedicated capacitor discharge tool. Capacitors can hold a dangerous charge even after power is off.
Note Wiring: Take a clear photo of the existing wiring connections to ensure correct re-installation.
Install New Capacitor: Disconnect the old capacitor and securely connect the leads of the new Bonaire 15MFD capacitor to the appropriate terminals.
Test Operation: Reassemble the cooler panels, restore power, and test the motor's start-up and running performance.

Limitations & Safety Notes

Installation requires working with mains voltage; always ensure power is isolated and confirmed dead before commencing work.
Capacitors can store a high electrical charge that can be dangerous; always discharge them safely before handling or removing.
Ensure the replacement capacitor's MFD rating and voltage match the original component's specifications.
This component is designed specifically for compatible Bonaire evaporative cooling systems; avoid using it in unapproved applications.

If you're diagnosing a motor that hums but won't start, or starts slowly, a failing run capacitor is often the first thing to check. A simple capacitance test with a multimeter can confirm if it's out of spec before you go pulling the whole motor apart.

Pair With

Pair with a quality digital multimeter for diagnosing electrical faults and other Bonaire evaporative cooler spare parts for comprehensive seasonal maintenance.
