Fieldpiece Arctic Essentials Kit – HVAC Maintenance Tool Set

Overview

The Fieldpiece Arctic Essentials Kit is a lightweight, professional-grade tool bundle for HVAC technicians working on air conditioning systems in tight spaces or on-the-go. Compact, accurate, and packed in a durable carry case.

Ideal for residential split systems, ducted setups, and light commercial maintenance.

🧊 All five tools are Fieldpiece originals — no generics, no substitutes.

What’s in the Kit

• 1 × Fieldpiece VP67 170 L/M 6 CFM A2L Certified 2-Stage Vacuum Pump – VP67INT
• 1 × Fieldpiece Recovery Unit – MR45INT
• Fieldpiece 2-Valve Digital Manifold with Data Logging & Micron Gauge – SM380vINT

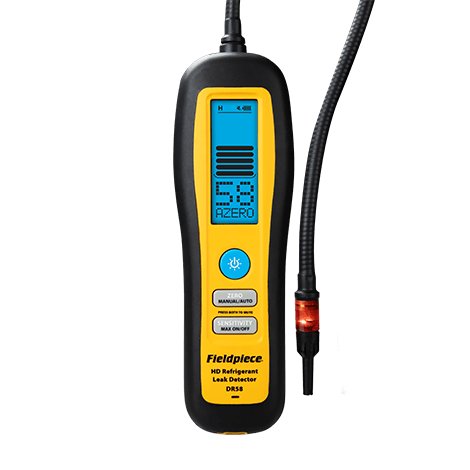

• 1 × Fieldpiece Infrared Refrigerant Leak Detector – DR58
• 1 × Fieldpiece Digital Refrigerant Scales 50 kg – SRS1

Features & Capabilities — Fieldpiece VPX7INT

Fieldpiece VPX7 283 L/M 10 CFM A2L Certified 2 Stage Vacuum Pump – VPX7INT

The NEW Fieldpiece VPX7INT high-efficiency vacuum pump with RunQuick™ Oil Change System — no fuss, no mess.

• 10 CFM (283 l/m) flow rate; 15 microns ultimate vacuum
• 3/4 HP DC motor
• RunQuick™ on-the-fly oil changes (seconds)
• Extra oil bottle storage; backlit reservoir
• Water resistant; patented light weight
• Ports: (1) 1/4”, (2) 3/8”, (1) 1/2”
• Small footprint; sturdy base
• Quarter-turn gas ballast with LED
• Removable cord storage; error messages
• Suitable for A2L class refrigerants (R32, R1234YF, R1234ZE, R512A, 419B, 439A & others)

What’s Included

• VPX7INT Vacuum Pump
• 2 × 8 oz RunQuick Oil Containers (filled)
• Operator’s Manual

Specifications

Flow Rate	10 CFM (283 l/m)
Oil Capacity	8 oz (237 mL)
Oil Compatibility	Fieldpiece Vacuum Pump Oil
Fieldpiece part numbers	OIL8X3, OIL32, OIL128
Oil Backlight	Blue LED
Oil Drain	Ball valve
Port Sizes	(1) 1/4”, (2) 3/8”, (1) 1/2”
Compressor	Rotary vane, two stage
Motor	3/4 HP Brushless DC
RPM	2500
Power Source	240 VAC @ 50 Hz 1 phase
Nominal Current Draw	6.0 AAC
Ultimate Vacuum at Input Ports	15 microns
Operating Environment	-1.1°C to 50°C
Dimensions	201 × 296 × 406 mm
Weight	11.1 kg

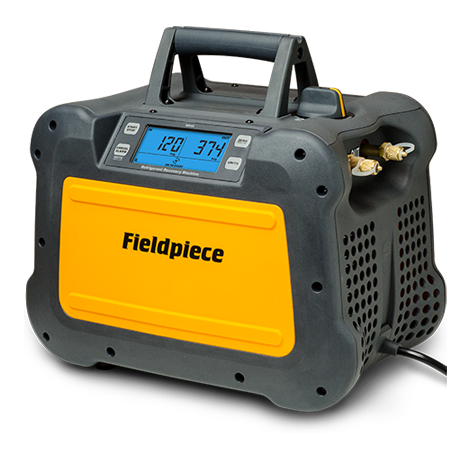

Fieldpiece Recovery Unit — MR45INT

Refrigerant recycling made easier and faster with the MR45INT.

• Dual cylinder compressor; ceramic-lined cylinders
• Auto shut-off at −10 kPa
• Runs as low as 190 VAC (voltage drop protected)
• Single dial self-purge
• 3,000 RPM; 1 HP DC motor
• Extra-large condenser for hot days
• Approx. 10 kg; water & rain resistant
• Easy access ports & cord storage
• Large backlit display with status messages
• UL Verified (EPA 608) & AHRI 740
• A2L ready, incl. R32; also suitable for SF6 transfer

What’s Included

• MR45 Refrigerant Recovery Machine
• 10 Extra Mesh Screens (Input Port)
• 3 Extra O-rings (Input Port)
• Operator’s Manual

Specifications

Display	2 × 10,000 count LCD with status messages
Backlight	Blue
Measurement Rate	3.3 times per second (nominal)
Input/Output Port Pressure Range	-30” Hg to 600 psig
High Pressure Cutoff	558 psig (nominal)
Resolution & Units	1 psig (1” Hg), 0.05 bar (2 cmHg), 0.01 MPa (2 cmHg), 5 kPa (2 cmHg)
Pressure Sensor Accuracy	±0.5” Hg (Vacuum), ±(0.6% of reading + 2 psig)
Final Recovery Vacuum	14.9” Hg
Compressor	Twin cylinder reciprocating (oil-less)
DC Motor	1 HP (variable smart speed)
Power Source	220–240 VAC @ 50 Hz 1 phase
Max Current Draw	7.0 A
Valve	Single dual-route ball valve
Input Port Filtration	9 mm stainless mesh screen
Dimensions	376 × 250 × 344 mm
Weight	10 kg
Operating Environment	0°C to 50°C
Storage Environment	-20°C to 60°C
Approved Refrigerants	R12, R12345YF, R134A, R22, R32, R401A/B/C, R402A/B, R404A, R407A/B/C/D, R408A, R409A, R410A, R412A, R500, R502, R507, R509

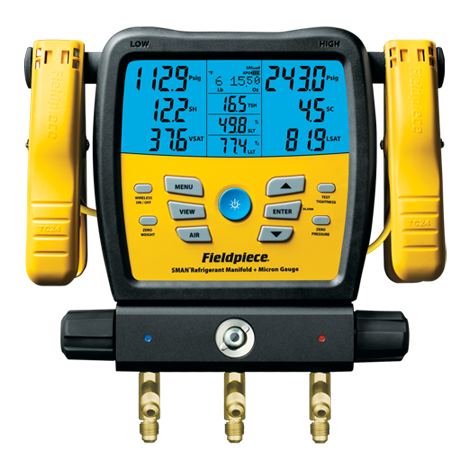

Fieldpiece Wireless 4-Valve Digital Manifold with Micron Gauge — SM480vINT

Stronger, more robust manifolds with data logging, tightness testing, and Job Link® wireless integration.

Highlights

• Data logging (stores up to 9 jobs, up to 7 days)
• Tightness Test (pressure differential over time)
• Customisable menu (auto power-off, backlight, alarms, units)
• Receives wireless readings from Job Link tools (JL3RH, JL3PC, SRS3)
• Job Link® App: reports, docs, 100 m direct wireless range

What’s Included

• SM480vINT
• 2 × TC24 Wired Type-K Pipe Clamp Thermocouples
• 1 × ATA1 Type-K Bead Thermocouple with clip
• 1 × ANC11 Padded Drawstring Case

Specifications

Display	LCD (5″ diagonal)
Backlight	Blue (adjustable)
Low Battery Indication	Shown below operating level
Over Range Display	OL (pressure), – – – – (temperature)
Auto Power Off	30 minutes (adjustable)
Maximum Manifold Pressure	800 psig (5500 kPa)
Battery Type	6 × AA alkaline
Battery Life	~350 hours (typical)
Radio Frequency	2.4 GHz
Wireless Range	Up to 305 m line-of-sight
Data Port	Micro USB
Operating Environment	0°C to 50°C, <75% RH
Storage Environment	-20°C to 60°C, <80% RH (battery removed)
Temperature Coefficient	0.1 × (specified accuracy) per °C
Weight	1.83 kg
Water Resistant	Designed to IP54

Fieldpiece Infrared Refrigerant Leak Detector — DR82

Infrared refrigerant leak detector with superior sensitivity in a rugged design for HVACR.

• 10-year sensor life
• Won’t trigger on soap bubbles or oil
• Multiple alarms; LED-lit tip; loud beeper
• Sensitivity better than 0.03 oz/yr (1 g/yr)
• Ruggedised; IP54-certified
• ~10-hour battery charge; back-lit LCD
• Non-conductive probe; lightweight
• Works on A2L refrigerants

What’s Included

• Advanced IR Refrigerant Leak Detector (DR82)
• 5 × Replacement Filtered Tips (RFT6)
• Wall Charger with USB-C Cable (RCA3)
• Blow-Molded Case (ABM2)
• Operator’s Manual

Specifications

Sensor Type	Infrared (IR)
Sensor Life	10 years typical
Sensitivity Levels	High, medium, low, turbo
Maximum Sensitivity	0.03 oz/yr (1 g/a) stationary; 0.1 oz/yr (3 g/a) in motion
Display Type	Backlit LCD
Detection Feedback	Tip LED, LCD bar graph/digits, beeper
Refrigerants	Detects CFC, HFC, HCFC, HFO and blends; doesn’t trigger on oil/soap
Response Time	<1 s typical
Recovery Time	<5 s typical
Body Type	Compact, rugged over-moulded
Battery	3.7 VDC 2600 mAh (non-replaceable)
Charge Time	~6 hours (typical with included charger)
Battery Life	~10 hours (backlight off)
Auto Power Off	10 minutes (no detection/button)
Operating Environment	0°C to 40°C; <75% RH (non-condensing)
Storage Temperature	-20°C to 60°C; <80% RH
Weight	~400 g
Water Resistance	Designed to IP54

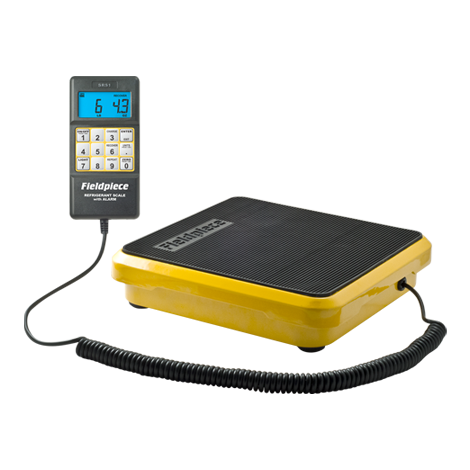

Fieldpiece Digital Refrigerant Scales 50 kg — SRS1

Perfect for residential or light commercial techs; weighs up to 50 kg in 0.01 kg increments.

Heavy Duty — Thick aluminium walls for accuracy; rubber feet and pad for daily impact resistance. Water-resistant scale (handle houses electronics—avoid immersion).

Charging & Recovery Alarms — Set targets quickly via the numeric keypad and work hands-free while the alarm alerts at your set point.

Easy to Carry — Under 7 lb in a heavy-duty soft-sided case; easy to shoulder for ladders and tight sites.

• Charging & recovery weight alarms
• 0.25 oz (0.01 kg) resolution
• Water-resistant
• Portable, field-rugged

Warranty

1 year from date of purchase (excludes consumables: filters, gaskets, leads, batteries, fuses, sensors, case, etc.).

Please operate the instrument following all instructions in the operator’s manual to avoid impairing product safety.
