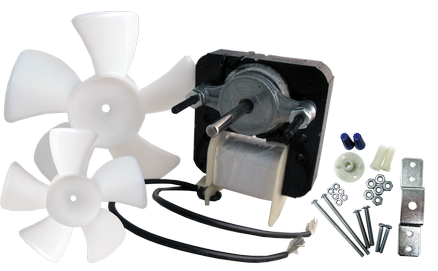

SM672 C frame motor kit
This all-in-one replacement kit is designed to fit C-frame and 3.5" round-style motors. It comes with everything you need to get the job done fast—hardware, fan blades, and more.
Key features
- ✅ Replaces all C-frame and 3.5" round-style motors
- ✅ Includes full hardware and mounting kit
- ✅ Comes with fan blades: FB402 & FB550
- ✅ Impedance protected for safety
- ✅ Sleeve design for durability
- ✅ CSA Approved and UL Recognized
- ✅ Reversible rotation: CW/CCW
Specs at a glance
- ✅ Current: 0.21 Amps
- ✅ Speed: 3000 RPM
- ✅ Shaft size: 3/16" x 1 1/4"
- ✅ Voltage: 240VAC
- ✅ Stack size: 5/8"
