With the 4-Way Digital Manifold, Mastercool is determined to become the leader in this industry sector. Taking the experience gained with the 2-Way Digital Manifold, the 4-Way model offers a 4-valve option and allows for many interactive PC-enhanced functions and 24 hours of data logging.
- Record and store up to 24 hours of data and up to 15 jobs
- Large Easy Read LCD
- Displays Pressures, Saturated, Actual, Superheat, and Subcool Temperatures
- Over 60 Refrigerants
- Clamp-on Thermocouple Connector displays Actual Temperature and Automatically Calculates Superheat or Subcool Temperature.
- The vacuum Sensor Cable displays a Deep Vacuum.
- The ball valve design includes a 3/8” bore through the block for increased flow.
Specifications
- Class 1.0 standard gauge reading
- Pressure Display: PSI, INHg, Bar, MPa, Kg/cm2
- Temperature Display: °F or °C
- Deep Vacuum Display: Micron, mBar, KPa, Pa, Torr, mTorr, mmHg
- Sensing Resolution: 1 psi (.07 Bar, .007 MPa, .07 Kg/cm2)
- Sensing Accuracy: ±1 psi or 1% of reading (whichever is greater)
- Working Pressure: 0 to 750 psi (52 Bar, 5 MPa, 52 Kg/cm2) (does not display 0-5 psi)
- Proof Pressure: 1000 psi (70 Bar, 7 MPa, 70 Kg/cm2) (Tolerable pressure without internal damage)
- Refrigerant Temperature Range: -40 to 200°F (-40 to 93°C)
- Operating Temperature: 32 to 122°F (0 to 45°C)
- Temperature Accuracy: ±1˚F (±0.5˚C) between 32 to 160˚F (0 to 71˚C)
- Storage Temperature: 10 to 120˚F (-12 to 49˚C)
- Connections: 1/4” M-Flare
- Power: 9V DC battery with optional AC/DC adapter
- Battery Life: 30-36 hours pressure and temperature mode only (continuous use) / 25-30 hours vacuum or backlight mode (continuous use)
- Auto-Off: 15 min. with disabling capability
Easily update refrigerants:
New refrigerants can be updated with a USB connection and Mastercool Software.
Refrigerants: R12, R22, R23, R32, R113, R114, R115, R116, R123, R124, R134, R134a, R141B, R142B, R143, R143A, R290, R401A, R401B, R401C, R402A, R402B, R403A, R403B, R404A, R405A, R406A, R407A, R407B,R407C, R407D, R407F, R408A, R409A, R410A, R410B, R411A, R411B, R412A, R413A, R414A, R414B, R417A (ISCEON MO59), R421A, R422A (ISCEON MO79), R422B, R422C, R422D (ISCEON MO29), R427A (FX100), R434A, R437A, R438A, R441A, R501, R502, R503, R504, R507A, R508B, R509A, R600, R600A, R601, R601A, R744
Mastercool’s 4-Way Digital Manifold Recording Function:
- Records and stores data directly into the manifold memory
- Records up to 24 hours of data or 15 jobs before having to download
- Downloads data at a rate 115 kb per second (24 hrs of data = approx. 15 min of download time)
- Uses Mastercool’s Data Logger Application to easily view data
Mastercool Data Logger Application:
- Display data in “real time” using a USB connection, computer and software
- Platform: Windows 2000, XP, Windows Vista and Windows 7
- Log Customer Name, Date and Technician’s Name
- Recorder/Cursor Function Features
- (1) Recorder TIME command. Record in intervals of 5, 15 min, 1, 4, 8 and 24 hrs
- (2) Recorder ON/OFF command
- (3) ZOOM: NORMAL, 5X or 10X. Use the zoom option to view specific data points of interest
- (4) The Time-Line measures the selected recording time. Moving the cursor along the timeline easily displays specific plot points
- The Data Logger program uses the Units information (Kg/cm2, BAR, Mpa, PSI, ˚C, and ˚F) contained in each data bit on the manifold and displays these units on the screen
- Display Function Features
- (1) Display ALL command. This enables all parameters of the Digital Manifold to be displayed simultaneously. As the line functions propagate across the screen, the “real-time” data will also be displayed digitally
- (2) Monitor specific functions of interest. The Data Logger continues to record all the functions in the background, regardless of how many individual functions are being displayed
- (3) Display DEEP VACUUM ONLY command. This enables only the deep vacuum readings to be displayed on the screen.
- (4) View ANALOG GAUGES function enables the user to represent the Digital Manifold data in the form of high and low pressure analog gauges.

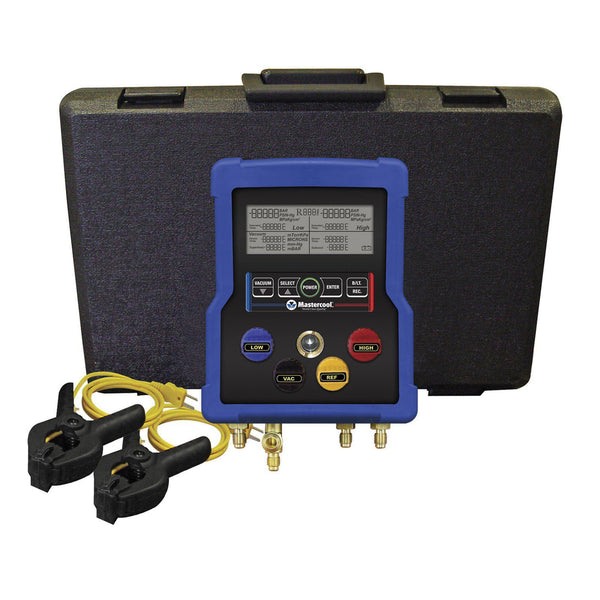

99963-EU: HVAC 4-Way Digital Manifold gauge set includes manifold with a set of 3-72” (150 cm) ball valve hoses with manual shut-off valves and one black vacuum hose, clamp-on thermocouple, 2 straight adapter fittings (90413), data logger CD and USB cable
* Manifolds assembled with teflon gasket hoses, add a -T
* Manifolds assembled with ball valve at the end of hoses, add a -E
Optional Accessories
- 52336: Clamp-on Thermocouple (extends 3 ft)
- 52337: Clamp-on Thermocouple (extends 10 ft)
- 90413: R410A Straight Adapter 1/4 FL-M x 5/16 Swivel-F
- 90411: 1/4 x 5/16 R410A Ball Valve Adapter
- 99333: 1/4 FL-M x 1/4 FL-M x 1/4 FL-F Tee
- 90413: R410A Straight Adapter 1/4 FL-M x 5/16 Swivel-F
- 90430: 1/4 x 1/4 Swivel Ball Valve
- 90433: 1/4 x 5/16″ Swivel Ball Valve
- 99334-110: 110 V AC/DC Adapter
- 99334-220: 220 V AC/DC Adapter
- 98062:Vacuum Sensor and Cable Assembly (6.5 ft)
- 99903-PBA: Plastic Carrying Case
- 99332: 1/8 NPT x 1/4-FL Flare Swivel Adapter
