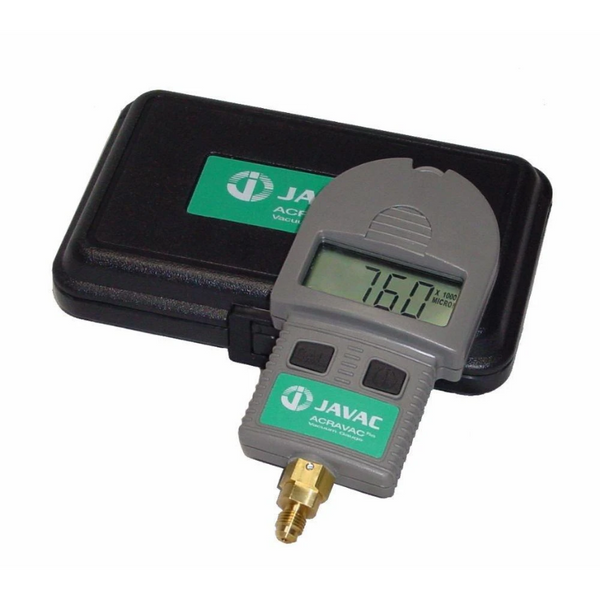

The latest INFICNON Acravac portable digital vacuum gauge offers superior accuracy, a filter-protected sensor, and an extended battery life, providing higher job site productivity.
It is a highly accurate digital gauge designed to measure vacuum levels during industrial processes and while evacuating air conditioning and refrigeration systems.
The gauge incorporates several innovative features for unsurpassed performance. Like its predecessor, it uses a Pirani sensor for greater accuracy and the ability to measure the entire vacuum process, from atmosphere down to one micron. The user will know instantly if the connections are vacuum tight.
An industry-first filter protects the sensor from oil and other contaminants for more accurate readings. Quick calibration allows the user to adjust the Acravac for slight variations in atmospheric pressure at the user’s specific geographic location to ensure greater accuracy.
The extended battery life offers up to 45 hours of use from just one 9-volt battery, three times the life of the previous Acravac. To maximize battery life, the Acravac shuts down after 60 minutes and saves the last reading for display upon the next start-up.
Key Features
- Starts measuring at the beginning of the evacuation cycle even at full atmosphere
- Lightweight and compact design supplied in hard carry case
- Auto shut down • Suitable for indoor and outdoor use
- Competitively priced
Specifications
- Sensor Type Pirani
- Connector Type Standard 1/4 inch male flare
- Range Atmospheric to 1 micron
- Controls On/Off, Unit selection and Calibration
- Display Resolution 1-micron increments, 1 Pa increments, and 0.01 bar increments
- Display Microns, pascals & mbar
- Accuracy <2000 microns + 5% >2000 microns + 10% Operating Environment 0°C to 50°C
- Storage Temperature -10°C to 60°C
- Maximum overpressure 150 psi (7.76X106 microns)
- Battery 9volt Battery Life 45 hours (continuous) Auto Shut Off After 60 minutes
- Weight 200g, including battery
Warranty:
- 12-Month Manufacturer's Warranty.
