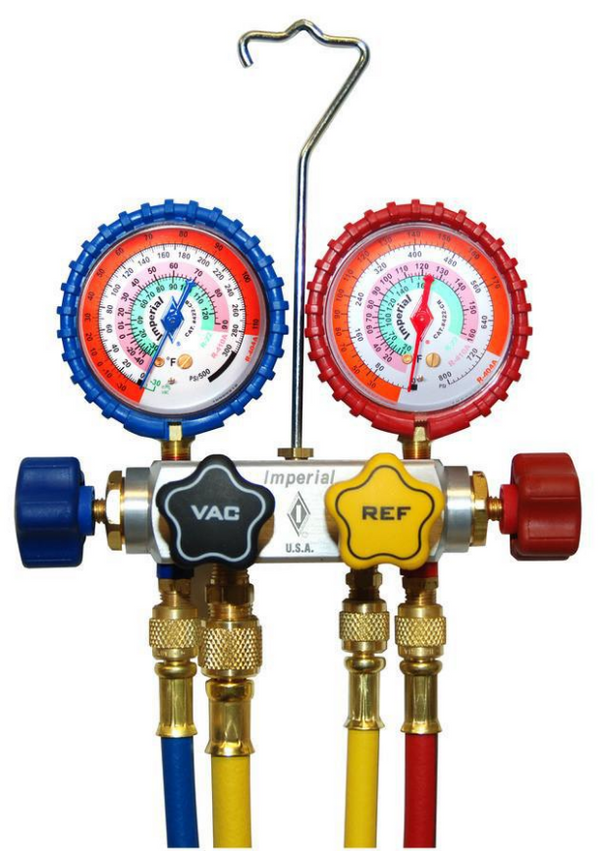

Imperial 800 Four Valve Manifold with 60" Hoses – R410A/R32 5/16" SAE
The Imperial 800 Series is a professional 4-valve manifold gauge set built for HVAC and refrigeration technicians working with R410A and R32 systems. The 5/16" SAE fittings connect directly to modern high-pressure refrigerant lines without adapters, while the deep-draw vacuum valve design and oversize internal passages make it one of the fastest-evacuating manifolds on the market.
Key Features
- Deep-draw vacuum valve design: Proven diaphragm-type, soft-seat valves close completely with fingertip pressure in one turn — superior for deep vacuum service
- 4× faster evacuation: 3/8" vacuum port and oversize internal passages evacuate systems four times faster than standard manifolds
- 4-valve efficiency: Vacuum, low side, high side, and refrigerant lines individually controlled — no need to switch charging lines
- Precision gauges with protective boots: Colour-coded scales with superior shock, vibration, and pulsation resistance for extended gauge life
- PolarShield® Hi-Performance Hoses: 60" hoses included — 800 PSI working pressure, 4,000 PSI burst pressure
- Ergonomic handles: Durable, soft-touch non-slip surface for secure grip with oily hands
- Swivel hanger: Included as standard
Fittings
- 5/16" SAE (R410A and R32 high-pressure lines)
Related Products
For the R410A version with a 3/8" vacuum hose, see the Imperial 800 with 3/8" Vac Hose. Browse our full range of manifold gauges and AC gauges at HVAC Supply Shop.
Ships Australia-wide from our Australian warehouse. Contact us for trade pricing.
