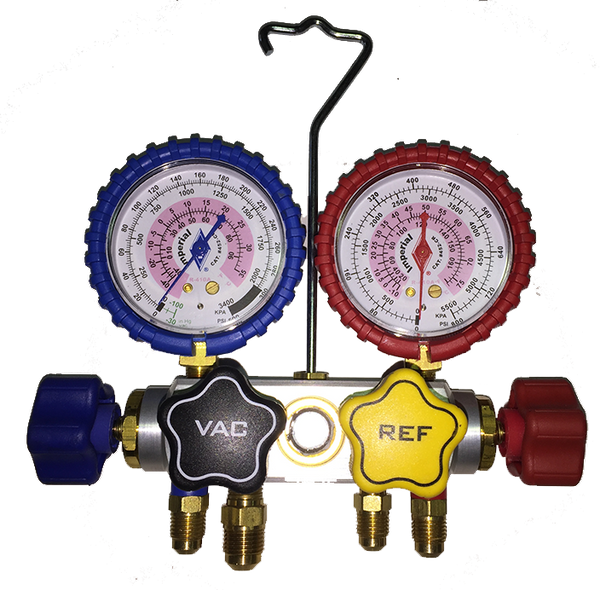

Imperial 800 Four Valve Manifold with 60" Hoses – R410A 5/16" SAE with 3/8" Vacuum Hose
The Imperial 800 Series with 3/8" vacuum hose is the complete manifold kit for HVAC technicians working with R410A systems who need maximum evacuation speed. The dedicated 3/8" vacuum hose connects directly to your vacuum pump without adapters, while the oversize internal passages and deep-draw valve design make it one of the fastest-evacuating manifolds available.
Key Features
- Deep-draw vacuum valve design: Proven diaphragm-type, soft-seat valves close completely with fingertip pressure in one turn — superior for deep vacuum service
- 4× faster evacuation: 3/8" vacuum port and oversize internal passages evacuate systems four times faster than standard manifolds
- 4-valve efficiency: Vacuum, low side, high side, and refrigerant lines individually controlled — no need to switch charging lines
- Precision gauges with protective boots: Colour-coded scales with superior shock, vibration, and pulsation resistance
- PolarShield® Hi-Performance Hoses: 60" hoses — 800 PSI working pressure, 4,000 PSI burst pressure
- Ergonomic handles: Durable, soft-touch non-slip surface for secure grip with oily hands
- Swivel hanger: Included as standard
What’s Included
- Imperial 800 4-valve manifold
- 60" hoses with 5/16" SAE fittings (R410A)
- 3/8" vacuum hose
Related Products
For the standard 5/16" SAE version without the dedicated vacuum hose, see the Imperial 800 Four Valve Manifold 5/16" SAE. Browse our full range of manifold gauges and AC gauges at HVAC Supply Shop.
Ships Australia-wide from our Australian warehouse. Contact us for trade pricing.
