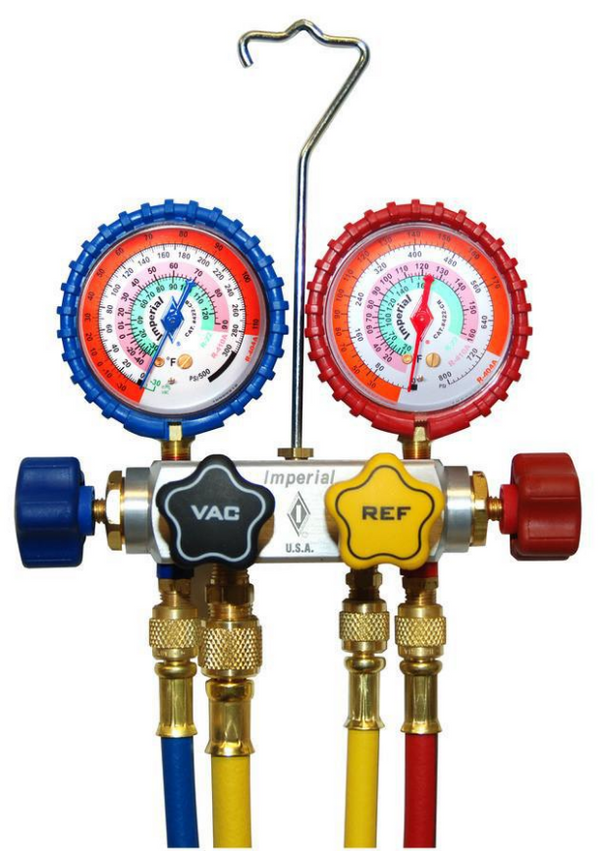

Imperial 700 Three Valve Manifold – 1/4" & 5/16" SAE with 60" Hoses
The Imperial 700 Kwik Charge™ is a three valve manifold gauge set designed for refrigeration and air conditioning technicians working with R410A and R32 systems. The 5/16" SAE fittings make it directly compatible with modern high-pressure refrigerant lines, while the 1/4" SAE port handles standard connections — no adapters required.
Key Features
- 3-valve design: Vacuum, low side, and high side lines individually controlled — no need to switch charging lines
- Deep vacuum valve design: Proven diaphragm-type, soft-seat valves close completely with fingertip pressure in one turn — superior for deep vacuum service
- 4× faster evacuation: 3/8" vacuum port and oversize internal passages evacuate systems four times faster than standard manifolds
- Precision gauges with protective boots: Colour-coded scales with superior shock, vibration, and pulsation resistance
- PolarShield® Hi-Performance Hoses: 60" hoses included — 800 PSI working pressure, 4,000 PSI burst pressure
- Ergonomic handles: Durable, soft-touch non-slip surface for secure grip with oily hands
- Swivel hanger: Included as standard
Fittings
- 1/4" SAE (standard connections)
- 5/16" SAE (R410A and R32 high-pressure lines)
Related Products
For a 1/4" SAE only version, see the Imperial 700 Three Valve Manifold 1/4" SAE. Browse our full range of manifold gauges and AC gauges at HVAC Supply Shop.
Ships Australia-wide from our Australian warehouse. Contact us for trade pricing.
