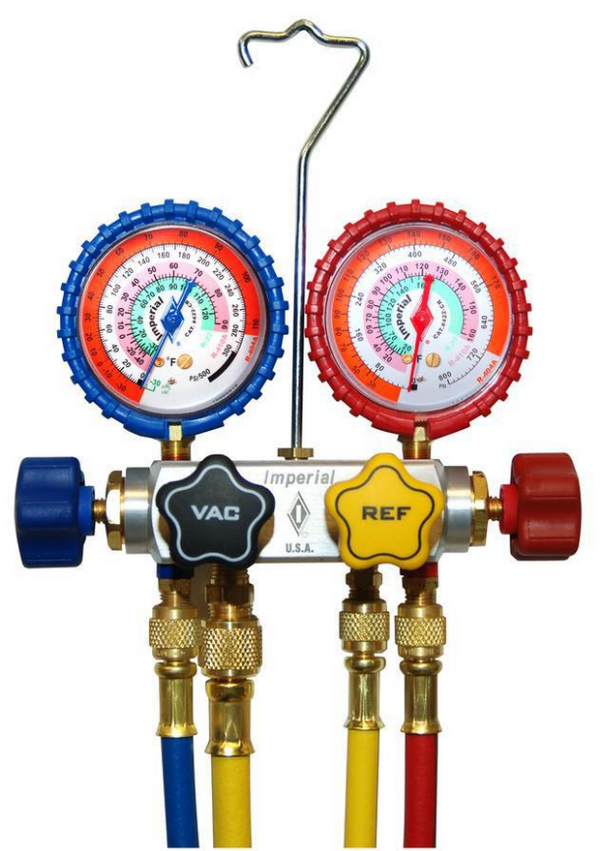

Imperial 600 Four Valve Manifold with 60" Hoses – 1/4" SAE
The Imperial 600 is a professional 4-valve manifold gauge set designed for refrigeration and air conditioning technicians who need complete system access in a single tool. With dedicated vacuum, low side, high side, and refrigerant ports — all individually controlled — there’s no need to switch charging lines mid-service. Includes 60" hoses with 3 × 1/4" SAE and 1 × 3/8" SAE fittings.
Key Features
- 4-valve efficiency: Vacuum, low side, high side, and refrigerant lines individually connected and controlled — no line switching required
- 4× faster evacuation: 3/8" vacuum port and oversize internal passages evacuate systems four times faster than standard 2-valve manifolds
- Deep vacuum valve design: Proven diaphragm-type, soft-seat valves close completely with fingertip pressure in one turn — superior for deep vacuum service
- Precision gauges with protective boots: Colour-coded scales with superior shock, vibration, and pulsation resistance for extended gauge life
- PolarShield® Hi-Performance Hoses: 800 PSI working pressure, 4,000 PSI burst pressure — 60" hoses included
- Ergonomic handles: Durable, soft-touch non-slip surface for secure grip even with oily hands
- Swivel hanger: Included as standard for hands-free use on site
What’s Included
- Imperial 600 4-valve manifold
- 60" hoses: 3 × 1/4" SAE + 1 × 3/8" SAE
Related Products
For a 2-valve manifold without hoses, see the Imperial 520 Two Valve Manifold. Browse our full range of manifold gauges and AC gauges at HVAC Supply Shop.
Ships Australia-wide from our Australian warehouse. Contact us for trade pricing.
