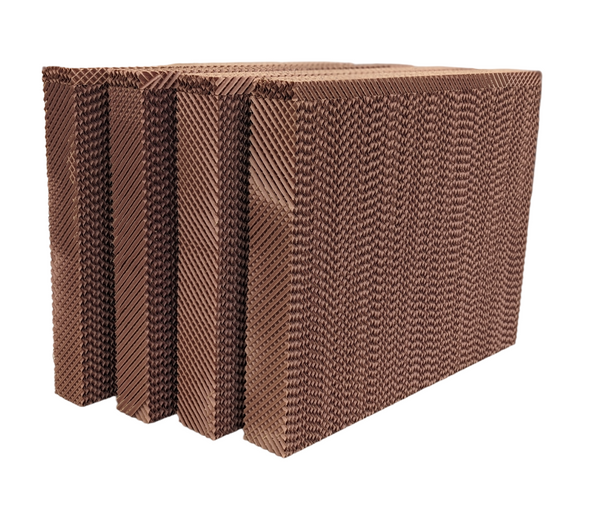

These are replacement filter pads for Brivis Contour L10 evaporative coolers. They're essential for maintaining air quality and system efficiency, especially during those long, dusty Australian summers.
Keeping your pads clean is crucial for a healthy unit, preventing mould growth, and making sure you get the best performance when the temperature really climbs.
Best For
HVAC technicians, service and maintenance teams, and competent DIY homeowners replacing Brivis Contour L10 evaporative cooler pads.
Compatibility
These filter pads are specifically designed for Brivis Contour L10 evaporative coolers. The dimensions are 710mm x 530mm x 75mm. Always double-check your existing filter pads' dimensions against these specs to ensure a perfect fit before ordering.
Features
- Direct replacement for Brivis Part Number B008277.
- Exact dimensions: 710mm x 530mm x 75mm, ensuring a snug fit.
- Contour L10 specific design for optimal airflow and filtration efficiency.
- Supplied as a complete set of 4 pads for a full replacement.
Technical Specifications
| Attribute | Detail |
|---|---|
| Dimensions (L x W x H) | 710mm x 530mm x 75mm |
| Suits Model | Brivis Contour L10 |
| Brivis Part Number | B008277 |
| Quantity | Set of 4 |
What's in the Box
- Set of 4 Brivis Filter Pads Contour L10 (710mm x 530mm x 75mm)
Using It on the Job
- Isolate power to the evaporative cooler at the mains switch and follow lockout procedures.
- Drain the cooler's water reservoir completely.
- Carefully remove the old, possibly dirty or mouldy, filter pads. Note their orientation for correct installation of the new ones.
- Clean the cooler's internal surfaces and water tray thoroughly before installing new pads.
- Install the new Brivis Contour L10 filter pads, ensuring they seat correctly and firmly in their channels.
- Restore water supply and power, then test the unit for proper operation and airflow.
Limitations & Safety Notes
- Always ensure the evaporative cooler's power is isolated at the switchboard before performing any maintenance or pad replacement.
- These pads are specifically for Brivis Contour L10 models; confirm your unit's model and check existing pad dimensions before purchase.
- Dispose of old pads responsibly, especially if visible mould or mildew is present.
- Regular cleaning of the cooler's reservoir, pump, and water distribution system significantly extends filter pad life and maintains hygiene.
Tradie Pro Tip
Don't just replace the pads; give the water tray and distribution system a good scrub-down while you're in there. It makes a huge difference to air quality and prevents that stale 'wet dog' smell later on. Also, check the float valve and pump for any gunk.
