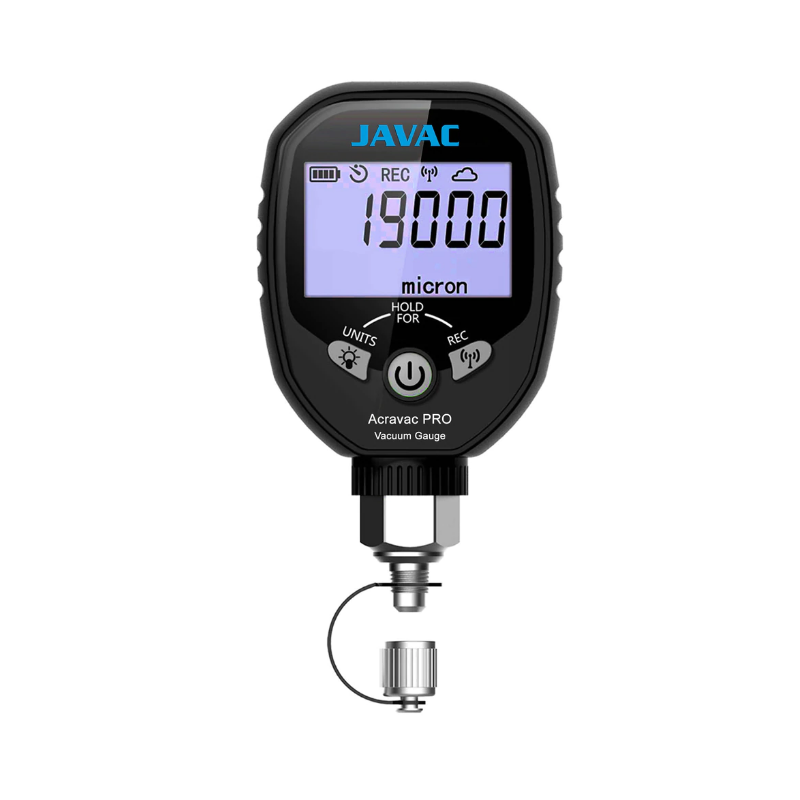

Javac Acravac Pro Digital Vacuum Gauge - C12627

The Acravac Pro is a wireless digital vacuum gauge for obtaining highly accurate vacuum measurements before filling refrigerants. It features a vacuum sensor to precisely measure vacuum in refrigeration and air conditioning systems and a wide range of other industrial fields. Leading IP65 water resistance for field technicians offers additional peace of mind.

The Acravac measures 0—19,000 microns with 1-micron resolution and operates for up to 200 hours on 3 AA batteries.

Possessing the very best accuracy and reliability, the Acravac Pro vacuum gauge is ideal for budget-conscious air conditioning and refrigeration technicians without sacrificing performance.

Key Features

• 0-19000 Micron Range
• Measures Hg, Torr, psia, mbar, mTorr, Pa, micron, kPa
• Bluetooth Mobile App
• Data Storage and Export Function
• Data Analysis Graphs
• Auto Off
• High/Low-Pressure Alarms
• LCD Display with Backlight
• Protection grade IP65 (Water + Dust Resistant)
• Carry Bag
• 12 Month Warranty

Specifications

• Measuring range: 0-19000 microns
• Operating temperature 0°F~140°F(-178°C~60°C)
• Resolution:
• 0-400 1 Micron
• 400-3000 10 Micron
• 3000-10000 100 Micron
• 10000-19000 250 Micron
• Wireless / Bluetooth transmission distance: 30m
• Data Storage: 9943 readings
• Fitting: 1/4″ Male Flare
• Accuracy: + / – 10%
• Product size: 127 x 74 x 37 mm
• Power supply: 3 AA batteries
• Max overpressure: 27.5 bar
• Battery life: 200h
• Units: inHg, Torr, psia, mbar, mTorr, Pa, micron, kPa

Warranty:

12 Month Manufacturer's Warranty.
