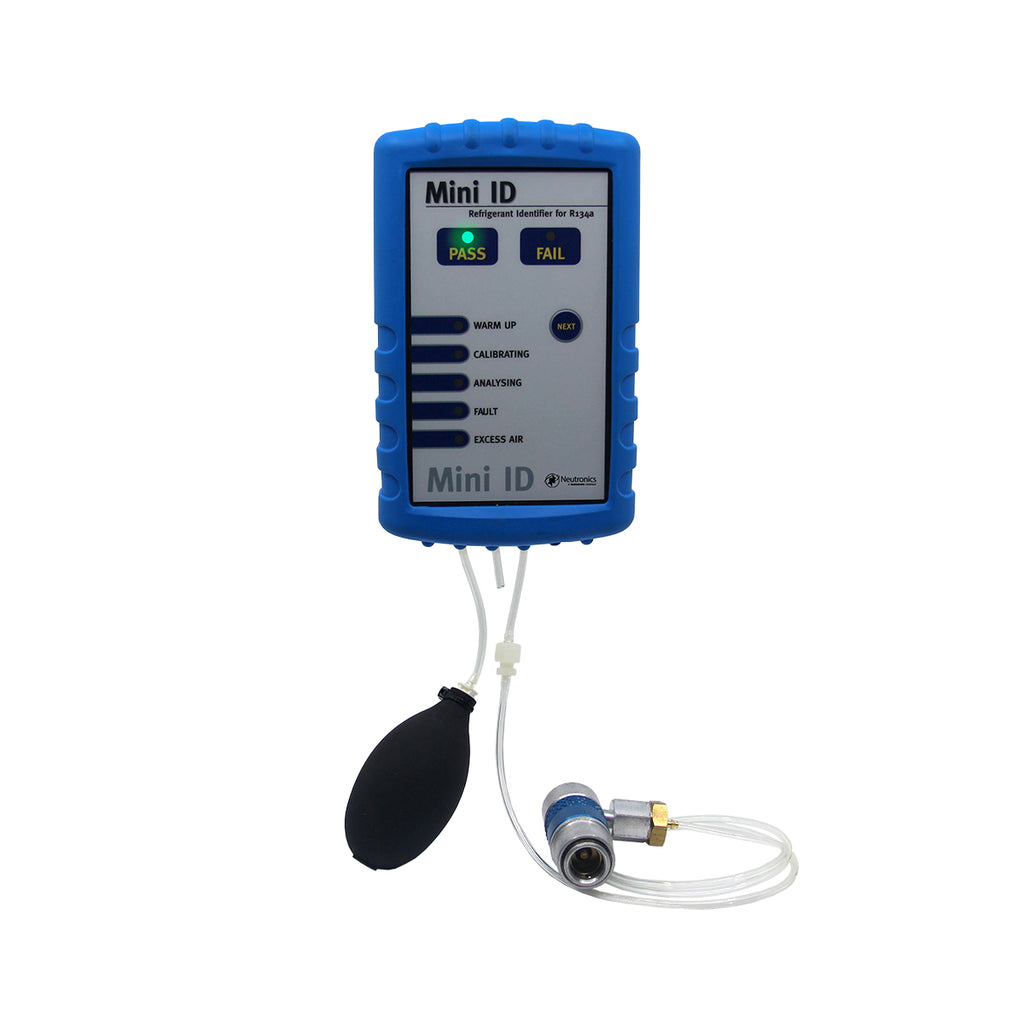

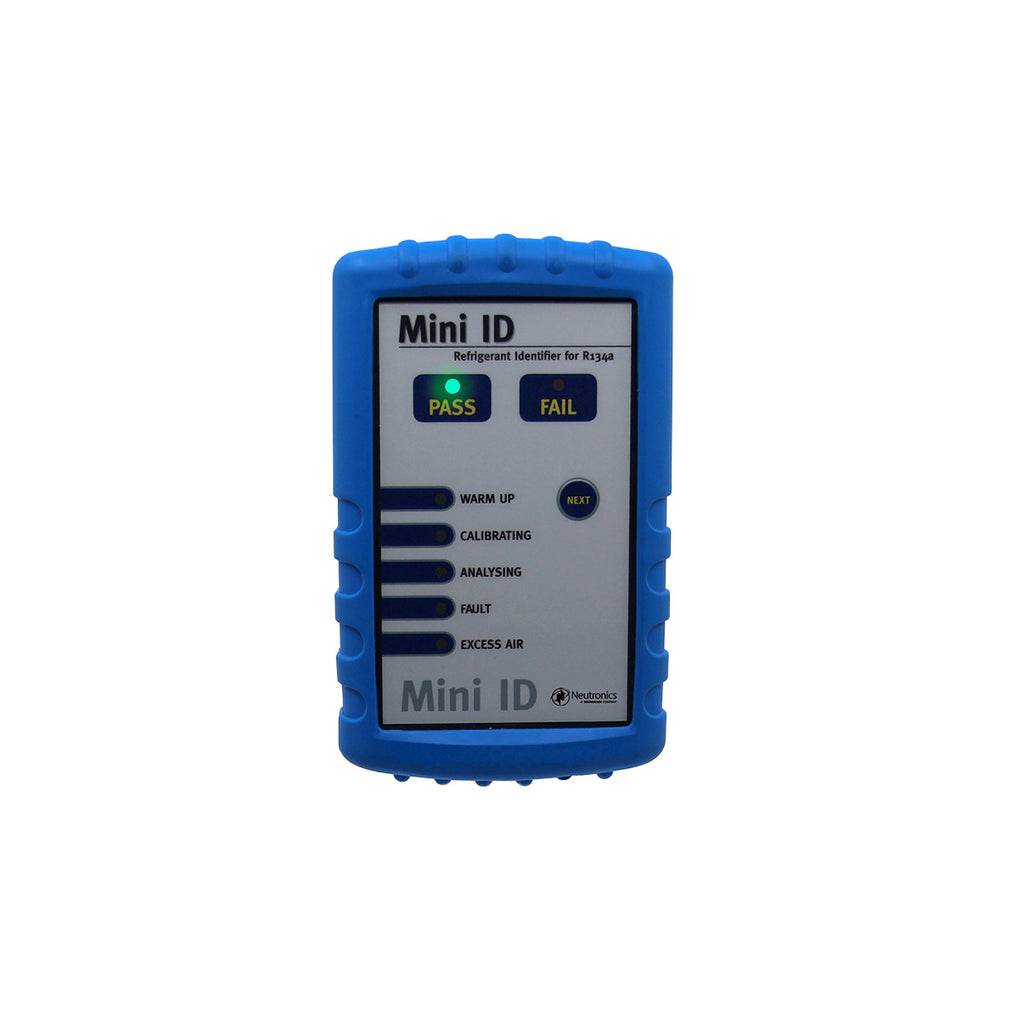

Neutronics Refrigerant Identifier R134a Mini ID

Neutronics Mini ID™ R134a Refrigerant Identifier is a low-cost R134a identification option.

It helps you verify the presence and quality of R134a refrigerant in a vehicle's air conditioning system to avoid recovering contaminated refrigerant that could damage your air conditioning service equipment.”

Key Features

• Easy to use with ‘PASS’ or ‘FAIL’ LED indication
• ‘FAULT’ and ‘EXCESS AIR’ LEDs
• Step-by-step LED indications of the gas sampling process
• Compact and lightweight design
• Rugged construction and housing
• Hand-held and extremely portable

Specifications

• Weight: 1kg
• Refrigerant Detected: R134a (Tetraflouroethane)
• Accuracy: PASS/FAIL — 95% Pure R134a
• Power Requirements: 12 VDC
• Approvals: SAE J1771, UL, CE
• User Interface: Membrane type with visual indicators and function key
• Calibration Method: Manual pump aspirator
• Storage Temperature: 14° to 120° F
• Operating Temperature: 50° to 120° F
• Construction Material: Moulded ABS Housing/Moulded Rubber Sleeve

Instructions & Manuals

Neutronics Refrigerant Identifier R134a Mini ID Manual

Warranty

12 Months Manufacturer's warranty
