Description
Recovers all commonly used CFC, HFC, and HCFC refrigerants, including A2L like R32 or R1234yF.
FEATURES:
- Recovers all commonly used CFC, HFC, and HCFC refrigerants, including A2L like R32 or R1234yF
- Designed for use with high-pressure refrigerants
- High-Pressure safety “cut off” switch 38,5 bar (550 psi)
- Proprietary “oil-less” compressor capable of handling both liquid and vapour refrigerants
- All-new ergonomic design for easier handling
- 3/8″ – 3-row Condensor for maximum performance in even the hardest conditions
- VAC Sensor Select, selectable low-pressure ON/OFF switch
- New Generation Compressor, new valves, and piston
- 1.8 m removable cable
- Manual reset high-pressure switch
- Corrosion-proof polyethylene blow-moulded case
- Field serviceable semi-hermetic compressor
- Self purge feature
- Includes filter-drier
- Power source – 230 V 50/60 Hz
- CE, UL, ARI, and TÜV Approvals.
INCLUDES:

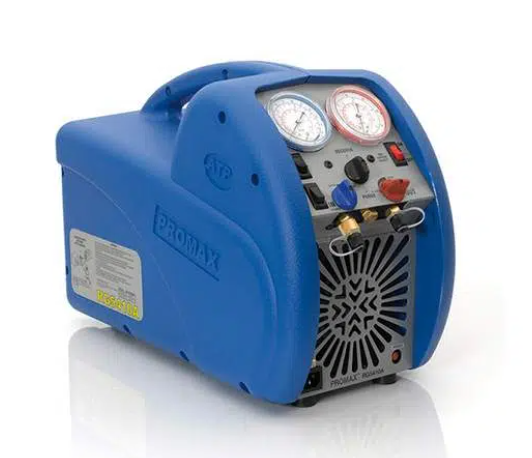

- 1 x RG5410A-E Refrigerant recovery unit
- 1 x filter-drier
- 12-month warranty
SPECIFICATIONS:
| Technical Specifications | |
| Compressor | > 100:1 compression ratio, air-cooled, machined aluminium alloy components, poppet style valves, hardened oxide coated cylinder walls, with triple Teflon-ceramic polymer piston seals |
| Drive Train | Direct Drive, 1/2 Horsepower cap start, inductive run, brushless AC motor |
| Motor Speed | 1725 RPM |
| Power Supply | 230V/ 60 Hz |
| Current Draw | 10A Max |
| Weight | 32lbs |
| Dimensions | 19″L x 13″H x 9″W |
| Performance Specifications | ||||
| Refrigerant Class | ||||
| Category III | Category IV | Category V | ||
| Push/Pull Recovery Rate | Lbs./min. kg/min |
10.23 4.64 kg |
12.28 5.57 kg |
13.71 6.22 kg |
| Liquid Recovery Rate | Lbs./min. kg/min |
3.46 1.57 kg |
3.99 1.81kg |
4.07 1.85 kg |
| Vapour Recovery Rate | Lbs./min. kg/min |
0.240 0.11 kg |
0.33 0.15 kg |
0.35 0.16 kg |
| High Temp. Vapour Recovery Rate | Lbs./min. kg/min |
N/A | 0.15 | N/A |
| Final Recovery Vacuum | kPa | 33.6 | 33.6 | 33.6 |
| Refrigerant Loss | Weight % | 0.02 | 0.02 | 0.02 |
| Residual Trapped Refrigerant | kg | <0.05 | <0.05 | <0.05 |
