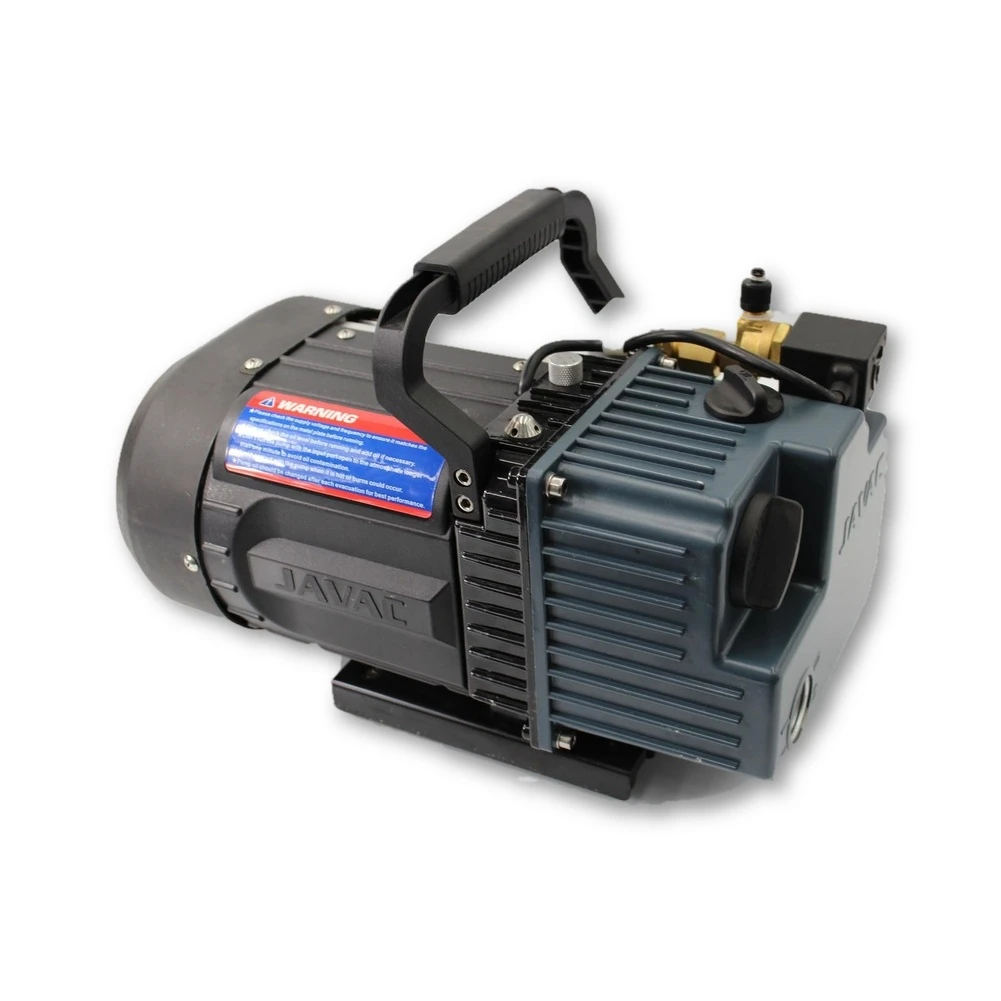

Javac Bulldog Pump 160 L/min Sparkproof Vbd1622

Vacuum pump with Spark proof design specially designed for A2L/R32 gases

The new JAVAC bulldog pump is a two-stage oil-sealed vacuum pump suitable for A2L classified refrigerants such as r32, rated as mildly flammable. These will soon become a popular choice of gas for many a/c units.

JAVAC vacuum pumps have been engineered to provide reliable field service with heavy-duty steel construction. They include a 2-stage motor, corresponding #15 vacuum pump oil, and a factory micron rating of 15 microns. They are built for deep vacuum service on appliances and residential and commercial systems using CFC, HCFC, and HFC refrigerants.

Get your business ready for these new refrigerants by preparing them today.

This unit comes with one initial charge of Oil.

Key Features

• Spark proof design
• Two-stage oil-sealed vacuum pump
• Ultimate vacuum of 1.5 microns and 160L/min

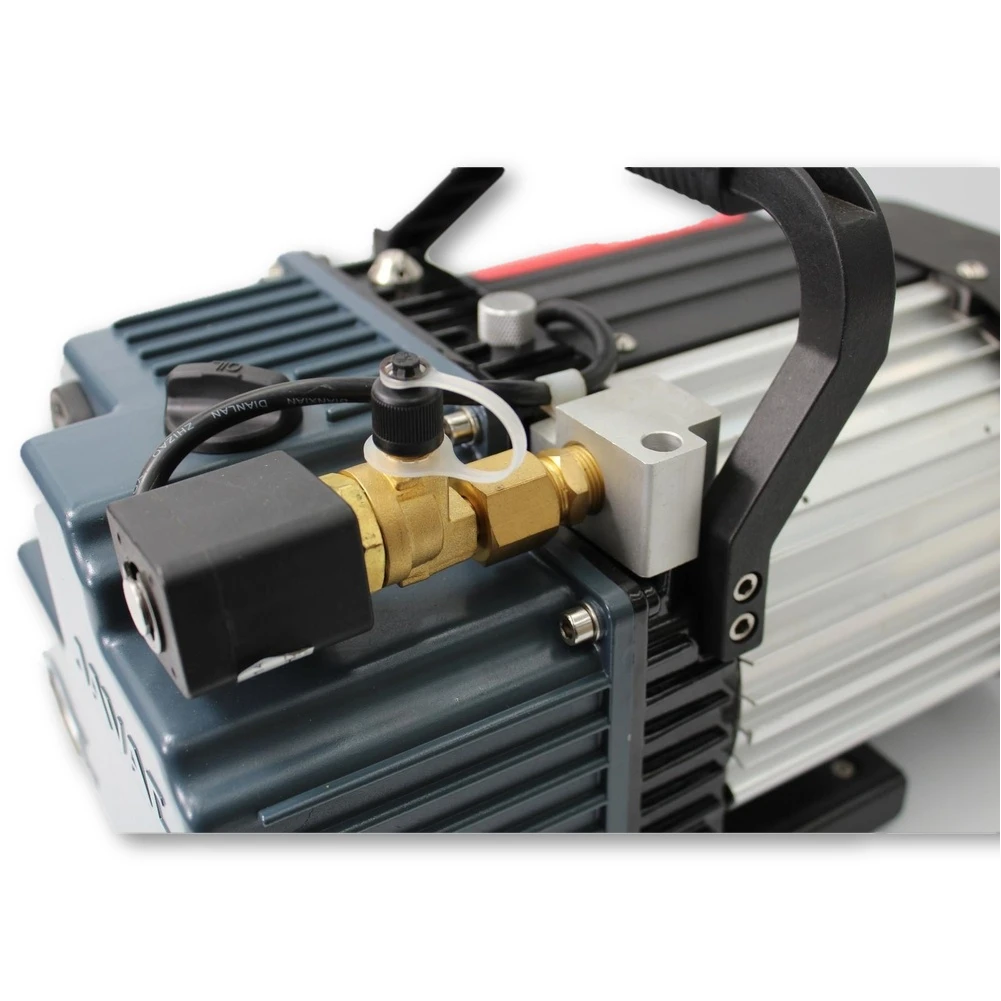

• Isolation solenoid valve

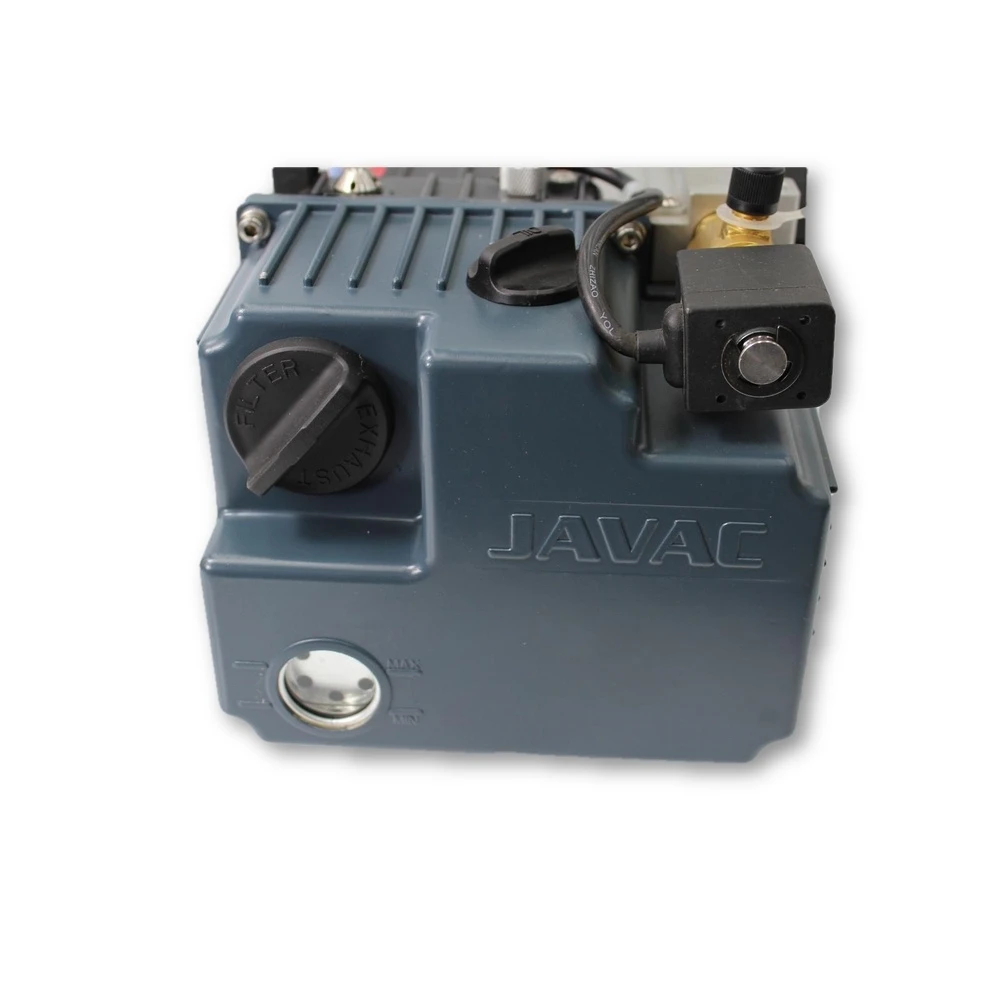

• Dual oil demister to prevent mist and smoke
• Fitted with a tri-connector suitable for 1/4 SAE, 3/8 SAE & 1/2 ACME
• Multi-voltage units are available on request
• Built to high JAVAC standards and fully supported by JAVAC

Instruction and Manuals

Javac Bulldog Pump 160 L/min Sparkproof Vbd1622 Manual
