Testo

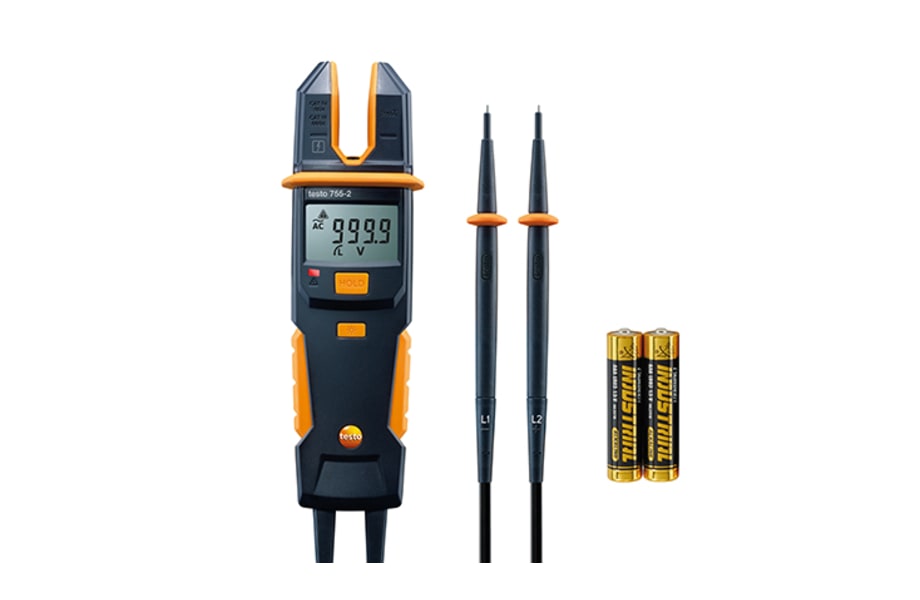

Testo 755-2 Current/voltage Tester - 0590 7552
All-in-one voltage tester and current measuring instrument: the innovative testo 755-2. A multitasker for almost all daily electrical measuring tasks. With automatic measurement parameter detection, exchangeable measuring tips, and an extended voltage range of up to 1,000 V.
With the testo 755-2, you are equipped for the most important tasks of the working day. The current/voltage tester is suitable for determining voltage or de-energization, checks voltage level and continuity, and measures current flow and consumption. It is a simple task to change faulty measuring tips – without needing to replace the instrument. And the automatic measurement parameter detection and integrated torch make operation and measurement particularly easy and reliable.
Compared to the testo 755-1, the testo 755-2 has an increased voltage range of up to 1,000 V. It enables rotating magnetic field measurement and single pole voltage testing to determine whether conductors are live quickly.
Key Features:
- Voltage range up to 1,000 V
- Simple, reliable operation with automatic selection of measurement parameters
- Single pole voltage testing to determine quickly whether conductors are live
Specifications
- Easy, reliable operation through automatic measurement parameter detection
- Suitable for almost all electrical measuring tasks
TECHNICAL DATA |
TESTO 755-1 |
TESTO 755-2
|
| Voltage measuring range | 6 to 600 V | 6 to 600 V |
| Current measuring range | 0.1 to 200 A AC | 0.1 to 200 A AC |
| Resistance measuring range | 1 Ω to 100 kΩ | 1 Ω to 100 kΩ |
| Continuity testing | < 50 Ω | < 50 Ω |
| Rotating magnetic field testing | - | > 100 to 690 V |
| Single pole phase testing | - | 100 to 690 V at 50/60 Hz |
| Display (counts) | 4,000 | 4,000 |
| Measuring point illumination | YES | YES |
| Overvoltage category | CAT4/600 V CAT3/1,000 V |
CAT4/600 V CAT3/1,000 V |
| Protection class | IP 64 | IP 64 |
| Operating temperature | -10 to +50°C | -10 to +50°C |
| Storage temperature | -15 to +60°C | -15 to +60°C |
| Dimensions (L x W x H) | 199 x 62 x 40 mm | 199 x 62 x 40 mm |
| Weight | 306 g | 306 g |
| Warranty | 2 years | 2 years |
| Authorizations | TÜV, CSA, CE | TÜV, CSA, CE |
| Standards | EN 61243-3:2010, EN 61010-1 |
EN 61243-3:2010, EN 61010-1 |
Instructions & Manuals
Testo 755-1 Current/voltage Tester - 0590 7551 Manuals
2 Years
Testo 755-2 Current/voltage Tester - 0590 7552
Seems to be a very solid multimeter for the price, functions all work
