Digital Aircon Gauges vs. Analog: A Comprehensive Comparison

HVAC technicians rely on AC manifold gauges as one of their most essential instruments. They are vital for AC diagnosis and repair, handling tasks from measuring refrigerant pressure to leak testing and refrigerant charging.

For a long time, these gauges were simply a brass manifold with two analog dials. Although digital aircon gauges with backlit LCDs are now popular, some technicians are hesitant to make the switch. In this article, we evaluate both types to help field technicians make the best decision for their toolkit.

Table of Contents

History of Aircon Gauges

An analog AC manifold gauge's main function is to measure refrigerant pressures before and after the compressor. Based on these two pressure measurements, an HVAC expert can assess if there is too much or too little refrigerant in the unit for effective performance.

Manifolds are also used for leak testing and evacuation. However, analog gauges require manual interpretation:

  • The technician must read the needle position on the dial.
  • They must perform manual calculations to get diagnostic data.
  • Since dial scales are printed on the face, a single gauge set can only handle a few specific refrigerants.

This limitation often forces technicians to purchase and transport multiple gauge sets to accommodate the various refrigerants currently in use.

New Technology

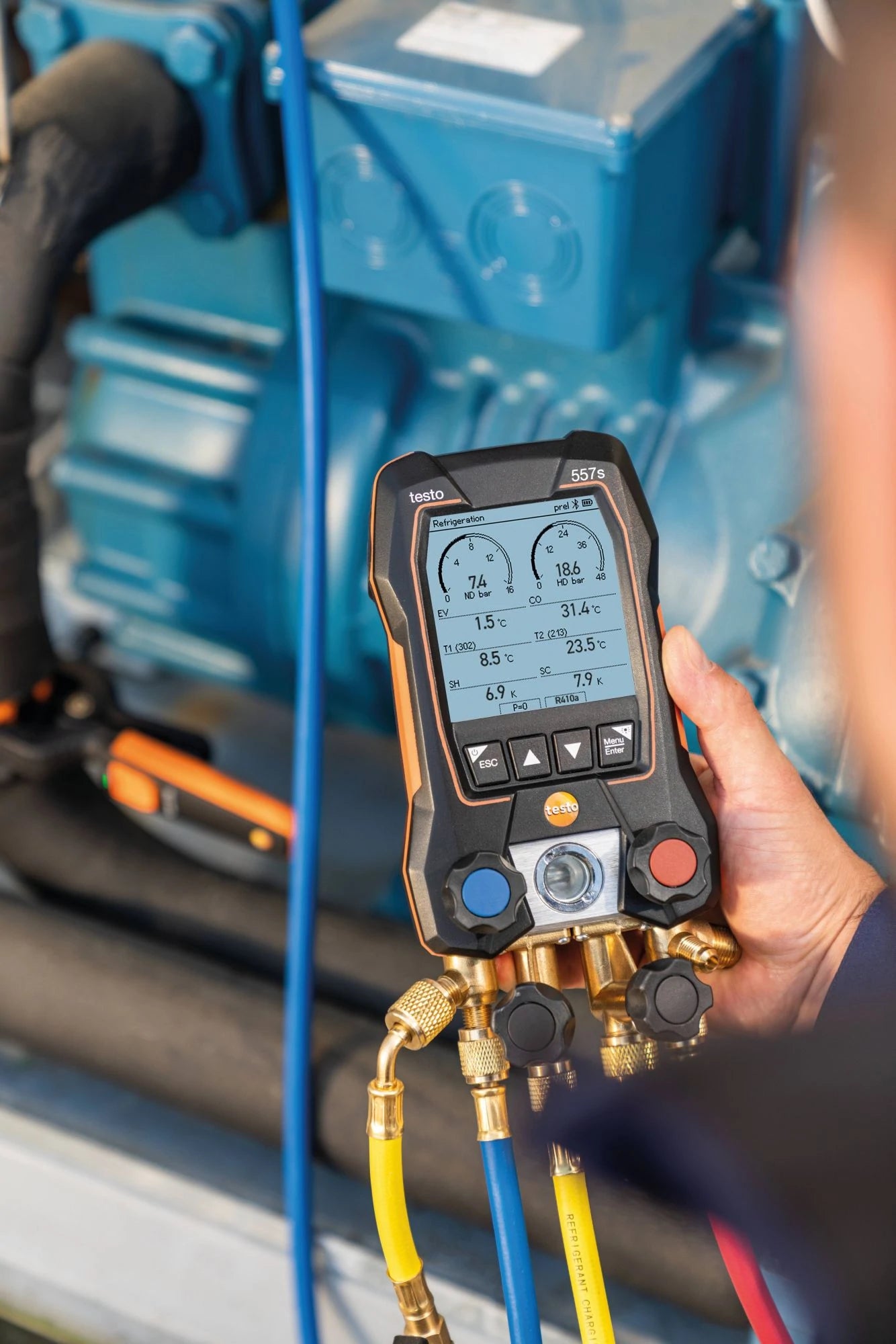

Replacing analog dials with electronic pressure transducers and digital displays offers two primary benefits: Speed and Accuracy.

Digital pressure gauges provide a precise numeric pressure reading instantly, eliminating the need to stare at a needle or estimate values. Other test equipment has already gone digital—electricians moved from analog to Digital Multimeters (DMMs), and digital thermometers have replaced mercury ones. It is a natural progression for manifold gauges to follow suit.

A great example of this evolution is the Yellow Jacket 46060 Series 41. It combines a simple metal manifold with digital gauges. Powered by a single battery, its circuits can run for years.

Key Advantage: Digital gauges work with a wide range of refrigerants without needing different dial scales. For instance, the Series 41 is pre-programmed with 21 refrigerant profiles, removing the need to carry multiple gauge sets.

Using Analog or Digital AC Gauges: Which is Better?

Digital gauges are superior for testing and adjusting the charge, and they are necessary if you need precise superheat and subcooling data.

The Digital Workflow:

  • Temperature clamps attach to the liquid and suction lines.
  • The digital unit has built-in pressure-temperature (P-T) charts.
  • The system automatically calculates and displays real-time superheat and subcooling data.
  • The margin for error is minimal.

The Analog Workflow:

If you use analog gauges for critical charging, the process is prone to human error:

  1. You must interpret the needle position between lines (parallax error).
  2. You must manually consult a P-T chart to find the temperature equivalent.
  3. You must manually subtract readings to calculate superheat/subcooling.

[Visual Comparison: Analog Parallax Error vs. Digital Precision]

By the time you finish the math, the system pressure or temperature may have fluctuated. This manual process can introduce 4 to 5 degrees of error. When your target subcooling is only 10 or 12 degrees, being off by 6 degrees is a significant problem.

What HVAC Professionals Prefer

Some manufacturers now require dealers to use digital gauges to maintain their authorized status. This is largely because many warranty returns were actually caused by faulty charging techniques (human error) rather than equipment defects. Digital gauges help reduce these false warranty claims.

When to Stick with Analog:

Analog gauges still have their place. For example, if you are working on a system with a severe burnout where the oil has turned acidic, you might not want to risk contaminating a $400 digital gauge set. In these "dirty" scenarios, or as a reliable backup if batteries die, analog gauges remain a staple in the van.

Analog vs. Digital: The Verdict

It is impossible to say one gauge is universally "superior." While HVAC experts and manufacturers favor digital gauges for their convenience, accuracy, and versatility, an old-fashioned analog gauge is robust and reliable.

Recommendation: The best approach is to own both. Use digital gauges for precise diagnostics and charging, but keep a rugged analog set on hand for burnout systems or as a backup.

Considerations for Choosing the Right Gauge

Before buying, consider these factors regarding digital gauges:

  • Power: They require batteries. Always carry spares to avoid downtime.
  • Cost: They have a higher upfront cost than analog sets.
  • Durability: Complex electronics can be more susceptible to damage from drops or rough handling compared to brass analog manifolds.
