Overview

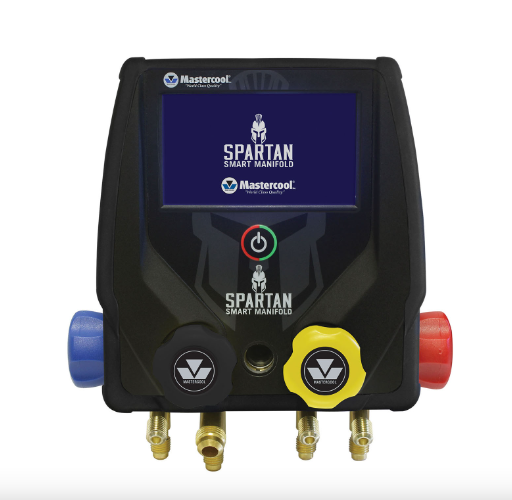

Mastercool’s SPARTAN Series Smart Manifold revolutionises A/C diagnostics with built-in Bluetooth® wireless technology, a 4.3” touchscreen, and precision down to 1 micron. Designed for HVAC pros, it simplifies superheat/subcool calculations, leak testing, and vacuum monitoring – all viewable in real-time on your mobile with the free Mastercool Connect app.
Key Features
- 4.3” colour touchscreen for intuitive control
- Built-in premium vacuum sensor (1 micron resolution)
- Class 1.0 gauge for high-accuracy readings
- Superheat & subcool auto-calculations
- Bluetooth app control via Mastercool Connect
- 36 hours of onboard data logging
- Leak test timers & delta readings
- Pressure, vacuum, and temperature displays
- Switch between digital and analog views
- Optional premium clamp probes with K-type connectors
Specifications
- Gauge: Class 1.0
- Pressure Range: 0–725 psi, proof up to 1000 psi
- Vacuum Sensor: Range 20,000 to 1 micron
- Temperature Range: -40 to 200˚F (±1˚F accuracy)
- Display Units: psi, bar, MPa, ˚F, ˚C, micron, Torr, mmHg
- Battery Life: 30–36 hrs (25–30 hrs w/ Bluetooth)
- Power: Rechargeable Li-Ion (USB-C charging)
- Data Logging: Up to 36 hours
- Auto-Off: After 30 min inactivity
- Bluetooth Range: Up to 80m (line of sight)
Included Refrigerants
This unit supports over 60 refrigerants, including popular types like R410A, R32, R22, R134a, R407C, R1234yf, R600a, R290, and more. Ideal for Australian residential and commercial HVAC systems.
Model Comparison & Descriptions
| Model Code | Description |
|---|---|
| 99923-BT | 2-way Spartan smart manifold only |
| 99923-BT-2 | 2-way Spartan manifold with 2 clamps |
| 99926-BT | 2-way Spartan with 60” high-pressure hoses and 1 clamp |
| 99926-BT-2 | 2-way Spartan with 60” hoses and 2 clamps |
| 99927-BT | 2-way Spartan with 72” hoses and 1 clamp |
| 99927-BT-2 | (This model) – 72” hoses and 2 clamps |
| 99926-BT-EU | 60” hoses, clamp, 2 straight adapter fittings (90413) |
| 99927-BT-EU | 72” hoses, clamp, 2 straight adapter fittings (90413) |
| 99926-BT-2BVE | 60” hoses with ball valves, 2 clamps, and 2 adapters |
