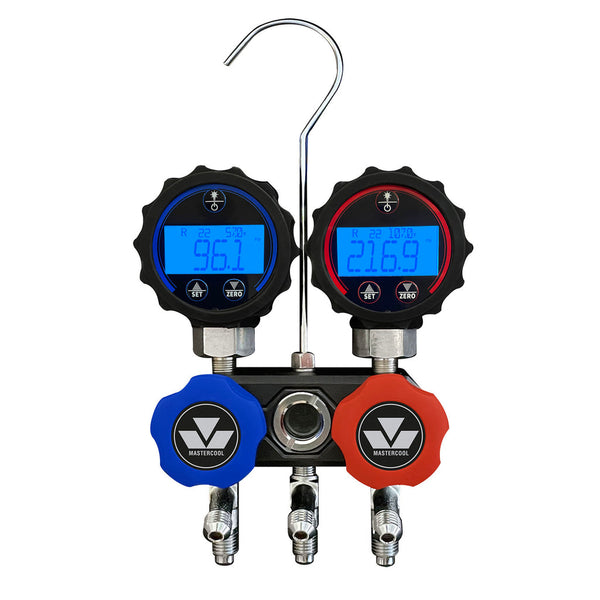

Mastercool’s NEW Black Series Compact Two-Way Digital Manifold Gauge Set is designed for serious HVAC techs who want high-precision diagnostics in a compact footprint. With 91 preloaded refrigerants, rugged aluminium build, and a bright blue LCD display, this tool delivers reliability and clarity in the palm of your hand.
Table of Contents
- 🔧 Features & Capabilities
- 📐 Technical Specifications
- 📦 What’s Included
- 🌬️ Supported Refrigerants
- 📄 Brochures & Instructions
🔧 Features & Capabilities
- Compact Footprint: Anodized black aluminium block with matte chrome fittings for portability and durability.
- Digital Power: Blue backlit LCD with pressure/temperature calculations.
- 91 Refrigerants: Works with most common refrigerants including R134a, R410a, R22.
- Multi-Unit Conversion: Switch between MPa, kPa, bar, psi, kg/cm², and inHg.
- Front Hose Holders: Designed for on-the-go use and quick adjustments.
- Visual Checks: Large chrome-rimmed sight glass for refrigerant flow.
- User-Friendly: Auto-shutoff, over-range alarm, max/min tracking.
- Durability: Rubber gauge guards and easy-to-grip knobs.
📐 Technical Specifications
- Low Pressure Range: -14.5 to 500 psi (-0.1 to 3.4 MPa)
- High Pressure Range: -14.5 to 800 psi (-0.1 to 5.5 MPa)
- Resolution: 0.5 psi
- Accuracy: ±0.5% FS
- Measurement Units: MPa, kPa, bar, psi, kg/cm², inHg
- Temperature Unit: °C / °F
- Over Range Alarm: Display “-OL-”
- Operating Temp: -10°C to 60°C
- Battery: CR2450 (Approx. 6 months life)
- Sampling Rate: 1 second
- Low Battery Warning: Display icon
- Display Size: 30 mm x 17 mm LCD
- Backlight: Blue, auto-off after 6 seconds
📦 What’s Included
- 1 x Mastercool 94103 Black Series Mini-Fold Compact Manifold (with gauges only)
- Packaged in a cardboard box
🌬️ Supported Refrigerants (91 Total)
Includes common refrigerants such as R11, R12, R22, R32, R134a, R410A, R407C, R404A, R1234yf, R600a, R744 and many more. See full list in the instruction manual linked below.
