Part/Code: MC90068-2V-220-B

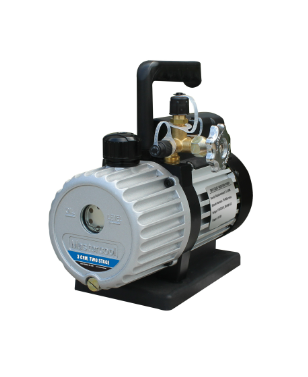

Mastercool 8 CFM Two Stage Vac Pump
227 lit/min / 189 lit/min
Product Description:
A good quality vacuum pump is an integral tool for complete A/C service. Mastercool vacuum pumps are durable and time tested. They stand up to the most grueling conditions and will provide years of reliable service. Mastercool offers a complete selection of pumps. Regardless of your service requirements, Mastercool has a model for your applications.
• New U.S. Design
• Stronger Motor
• Gas Ballast Valve Helps Prevent Oil Contamination Caused by High Moisture
• Easily Removable Vapor Discharge/Oil Fill Port. Contains Internal Check Valve to Prevent Escape of Liquid Oil
• Large Oil Level Sight Glass with Max/Min Oil Level Indicator
• Easily Accessible Oil Drain Valve
• Large, Light Weight Reinforced Base for Stable Positioning
• Field Replaceable Cartridge
• Cooling Fins to Keep Temperature Cooler During Extended Motor Operation
• High Volume Fan Provides Cool Air to Motor and Pump
• Manifold Valve Isolates Pump from the System when Testing for Leaks. Includes 3 Inlet Ports, 1/4”, 3/8” SAE and 1/2” ACME
• Dual Voltage Capability
• Thermally Protected Motor with On/Off Rocker Switch
SPECIFICATIONS:
• No. of Stages: 2
• Free Air Displacement: 227 lit/min / 189 lit/min
• Ultimate Vacuum: 15 Microns
• Pump Motor: 3/4 HP
• Pump Speed: 1440 RPM
• Electrical Specs: 110/220 V, 50/60 Hz
• Power Cord: 220 V Cable (Shuko)
• Shipping Weight: 34 lbs (15.43 kg)
• Dimensions in cm: 38 x 18 x 27
SERVICE INFORMATION:
• Oil Capacity: 19 oz / 570 ml
• Replacement Cartridge: 90168-B
