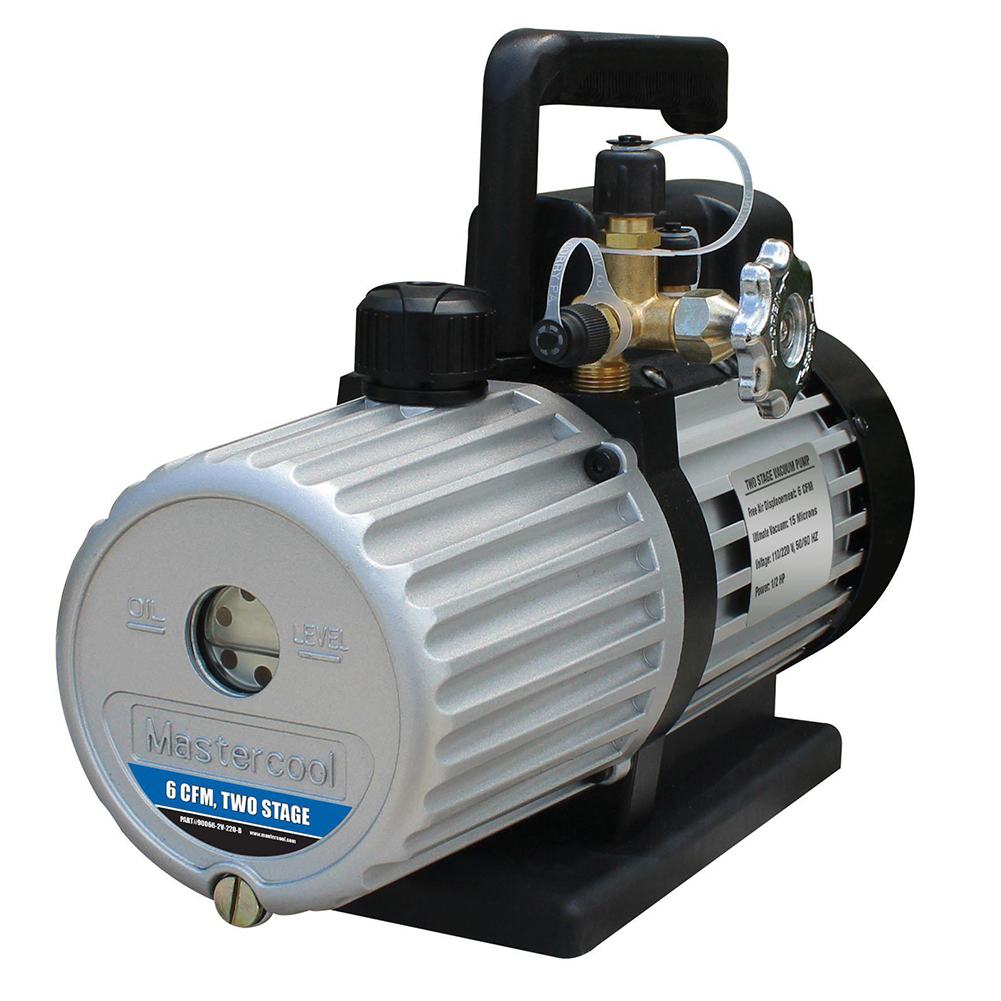

What an AC Vacuum Pump Does and Why It Matters in HVAC Work
An AC vacuum pump does one job that affects everything that comes after it: it removes air, moisture, and non-condensables from the refrigeration circuit before the system is charged or returned to service. That sounds simple, but it is one of the most important steps in air conditioning and refrigeration work. If the system is not evacuated properly, moisture stays behind, acids can form, oil quality suffers, and performance problems can show up well after the install or repair looked finished.
That is why vacuum work is not just a box to tick. It is part of protecting the compressor, helping the refrigerant circuit run properly, and avoiding the kind of issues that become expensive call-backs later. A strong evacuation setup usually includes more than just the pump itself. In real HVAC work, technicians also depend on related HVAC tools such as manifolds, hoses, vacuum gauges, and other service gear that support a proper evacuation process.
Whether you are new to vacuum pumps or just want a clearer understanding of how they fit into aircon maintenance, this guide walks through the key parts, main types, how they work, and how to use them more safely and effectively.
Why Vacuum Pumps Matter Before Charging a System
Before a repaired or newly installed system is charged, the refrigerant circuit needs to be clean and dry. Air trapped inside the system affects pressures and efficiency. Moisture is even worse because it can react with refrigerant and oil, contribute to acid formation, and damage internal components over time.
This is why technicians evacuate the system after repairs and before charging. The vacuum pump reduces the internal pressure of the system so moisture boils off more easily and unwanted gases are removed. In practice, that means the pump is doing much more than “sucking air out.” It is preparing the system for proper operation.
Good evacuation also works hand in hand with other service tools. That is why the approved destination for relevant support gear in this article is the broader HVAC tools collection, because evacuation quality depends on the full setup, not just the pump body.
A strong pump will still feel slow if the rest of the evacuation setup is poor. Hose restriction, bad gauge placement, and contaminated oil can all make a decent vacuum pump look weaker than it really is.
Major Parts of an AC Vacuum Pump
An air conditioning vacuum pump is made up of several components that work together to create low pressure inside the system being evacuated. Understanding those parts helps make the machine less mysterious and also helps explain why maintenance matters.
Motor
The motor drives the pump. In rotary vane designs, the motor turns the internal mechanism that creates the vacuum effect. Motor quality affects start-up, running stability, and how confidently the pump can maintain performance during deeper evacuation stages.
Compressor / Pumping Mechanism
In everyday trade talk, people often describe the vacuum pump as creating suction, but what it is really doing is lowering pressure in the connected system. In rotary vane units, this happens through the movement of vanes and the shape of the housing, which compresses and expels gases drawn out of the circuit.
Because the pump is working against a changing pressure environment, real performance depends not only on the pump internals but also on oil condition, pump stage design, and the quality of the evacuation setup connected to it.
Support Base and Housing
The support base keeps the unit stable during use. On job sites, this matters more than people admit. A pump that sits securely is easier to work with and less likely to be knocked, spilled, or run awkwardly while hoses are connected.
Inlet
The inlet is the connection point between the pump and the service setup. This is where hoses, manifolds, and other HVAC service tools become part of the evacuation process. The best pump in the world still depends on clean, sensible connections to work properly.
AC Vacuum Pump Types
There are a few main pump types discussed in HVAC and related vacuum applications, but not all are equally common in everyday refrigeration and air conditioning work. In practical HVAC service, rotary vane pumps are by far the most familiar, while other types are more niche.
1. Rotary Vane Pumps
Rotary vane pumps are the most common AC vacuum pumps in HVAC work. They use a rotor with moving vanes inside a shaped housing to create low pressure and evacuate the system. These pumps are oil-based, and that oil plays a major role in sealing and helping the pump achieve deep vacuum levels.
That is why oil condition matters so much. Dirty or moisture-laden oil reduces performance and makes it harder to reach lower micron levels consistently.
Common internal elements include:
- Rotor and vanes
- Housing and pumping chamber
- Valves that control movement and protection
- Oil sump and oil separation areas
- Motor and suction connection points
For everyday aircon maintenance, this is still the pump type most technicians rely on because it balances availability, serviceability, and strong low-pressure performance when maintained properly.
2. Vacuum Generators
Vacuum generators are less common in standard HVAC evacuation work. They create vacuum through airflow and nozzle design rather than a traditional oil-sealed pumping mechanism. They can move moisture quickly in some situations, but they generally are not the first choice for deep evacuation in refrigeration and air conditioning service.
They tend to make more sense in niche or specialised setups than as the default pump on an HVAC van.
3. Diaphragm Pumps
Diaphragm pumps use a different operating principle again. They can be cleaner in some applications because they avoid oil-based pumping, and they are sometimes praised for simpler maintenance profiles. But in the context of air conditioning and refrigeration vacuum work, they are not the standard answer when deep evacuation is the goal.
They may suit other types of vacuum work, but most HVAC technicians still lean toward rotary vane designs for practical field use.
Single-Stage vs Two-Stage Vacuum Pumps
Beyond pump type, technicians also compare single-stage and two-stage designs. This choice matters because it affects how well the pump can continue pulling down as pressure drops lower.
A single-stage pump uses one compression stage. It can evacuate a system effectively, especially for lighter tasks, but it tends to lose some edge as the evacuation deepens.
A two-stage pump adds a second compression stage. In practical terms, that helps it keep pulling more effectively at lower pressures, which supports deeper evacuation and better moisture removal. That is why many technicians prefer two-stage pumps for more demanding HVAC work.
The decision comes down to the kind of jobs you do. If evacuation quality and lower final vacuum levels matter regularly, a two-stage pump is usually the stronger long-term choice. If the work is lighter, the simplicity of a single-stage design may still suit some users.
Do not judge a vacuum pump only by airflow or litre-per-minute numbers. Deep evacuation performance matters more than headline flow once the system gets closer to target vacuum levels.
How to Use an AC Vacuum Pump
Using an AC vacuum pump properly is not just about switching it on and waiting. The setup, pump preparation, hose arrangement, and final verification all matter. Here is the practical workflow in clear steps.
Step 1: Set Up the Pump
Before you start, make sure the pump is in good working condition. If it is an oil-sealed rotary vane pump, check the oil level and condition. Use proper vacuum pump oil, not a generic lubricant. Clean oil helps the pump perform properly and reach deeper vacuum levels.
Next, connect the service setup. In a common manifold-based arrangement:
- The yellow hose connects to the pump
- The red hose connects to the high side
- The blue hose connects to the low side
Then check that the manifold and other HVAC tools being used in the setup are connected properly and that the system is ready for evacuation.
Step 2: Pull the Vacuum
Start the pump and open the necessary manifold valves to begin evacuation. The pump will remove air and moisture from the system. As the pressure falls, the process slows, which is normal. This is where patience and good setup matter.
Many technicians aim to pull below 1,000 microns, with 500 microns often treated as the stronger target for a properly deep evacuation. The exact procedure depends on the system, the repair, and the service standard being followed, but the main point is the same: do not stop too early just because the pump has been running for a while.
Step 3: Isolate and Check
Once the target vacuum is reached, isolate the system and watch whether it holds. If the pressure rises quickly, that may indicate a leak, trapped moisture, or a connection issue. If it holds reasonably stable, that gives more confidence that the system is dry and tight enough for the next step.
This is why the full evacuation process is about both pull-down and hold testing. The pump creates the vacuum, but the result still needs to be verified.
Step 4: Shut Down and Disconnect
Once the evacuation stage is complete and the result is acceptable, turn off the pump, close down the setup properly, and disconnect the hoses. Do not rush the final disconnection. Careless finishing can undo a clean evacuation process.
Common Vacuum Pump Mistakes in Aircon Maintenance
A lot of problems blamed on the pump are actually setup or process problems. Some of the most common mistakes include:
- Running contaminated or old pump oil
- Using a restrictive hose setup
- Stopping the evacuation too early
- Skipping the hold test
- Using poor-quality supporting tools
This is why good vacuum work depends on the whole kit. A pump is only part of the result. Hoses, manifolds, gauges, and the rest of the HVAC tools setup all affect how well the job actually goes.
How to Choose the Right AC Vacuum Pump
The best vacuum pump depends on the work you do most often. Small residential systems, larger ducted work, refrigeration jobs, and frequent commissioning all place different demands on evacuation equipment.
When comparing pumps, it helps to think about:
- Single-stage vs two-stage design
- Overall build quality
- Ease of oil changes and maintenance
- How the pump fits into your wider tool setup
If you are looking for a specific replacement or a high-performance upgrade, you can Browse vacuum pumps here to compare technical specs and flow rates. While the rest of your kit is important, the core of your setup is the pump itself.
AC Vacuum Pumps for HVAC Maintenance
AC vacuum pumps are highly specialised tools that help remove air and moisture from sealed systems before charging and commissioning. In real HVAC maintenance, they are not optional extras. They are core service tools that support system reliability and correct performance.
If you are building or upgrading your setup, it makes sense to review vacuum pumps alongside the other equipment that supports proper evacuation. That is why the approved place to browse from this article is the broader range of HVAC tools here.
A better vacuum result often comes from improving the whole evacuation setup, not just buying a bigger pump. Clean oil, better hoses, proper gauge use, and disciplined testing all matter.
